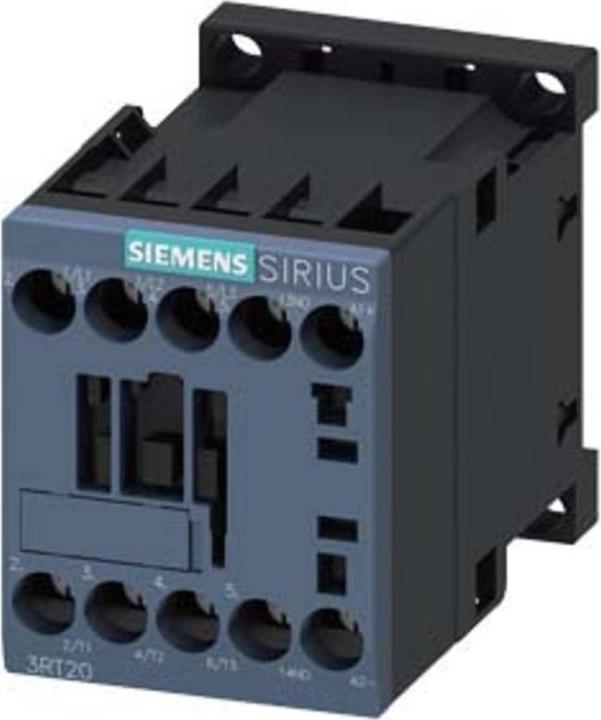

Siemens Indus.Sector Coupling Contactor 3RT2017-1SB41

Siemens digital industrial coupling contactor 3RT2017-1SB41.

Manufacturer: Siemens Digital Industry.
Designation: Coupling contactor 5.5 kW/400V 1Ö 24VDC.
Type: 3RT2017-1SB41.
Rated control supply voltage Us at DC: 24 V.
Voltage type for actuation: DC.
Rated operational current Ie at AC-1, 400 V: 22 A.
Rated operational current Ie at AC-3, 400 V: 12 A.
Rated operational power at AC-3, 400 V: 5.5 kW.
Rated operational current Ie at AC-4, 400 V: 8.5 A.
Rated operational power at AC-4, 400 V: 4 kW.
Rated operational power NEMA: 5.51624062 kW.
Suitable for series installation: Yes.
Number of auxiliary contacts as make contacts: 1.
Connection type main circuit: Screw connection.
Number of make contacts as main contacts: 3.

Further details: Power contactor, AC-3 12 A, 5.5 kW / 400 V 1 S, DC 24 V 0.85-1.85*US with suppressor diode integrated. Size S00, screw connection. SIRIUS 3RT2 coupling contactor for switching motors and auxiliary and control circuits, specially designed for direct connection to electronic controls. The 3RT2 contactors are part of the SIRIUS modular system with its optimally matched products. They impress with their high performance combined with compact design and high contact reliability. They can be combined in a variety of ways with other components in the load feeder. Many of the device combinations are factory-tested. Integrated auxiliary switches reduce the complexity of your setup. The front connections allow easy wiring. The 3RT2 contactors are climate-proof, approved worldwide (e.g., IEC and UL/CSA) and IE3/IE4 ready. In addition to screw connection technology, the devices are also available throughout with a spring-cage connection for fast, maintenance-free, and vibration-proof connection. Simple, efficient, always up-to-date - the SIRIUS modular system. EAN: 4011209846623.
