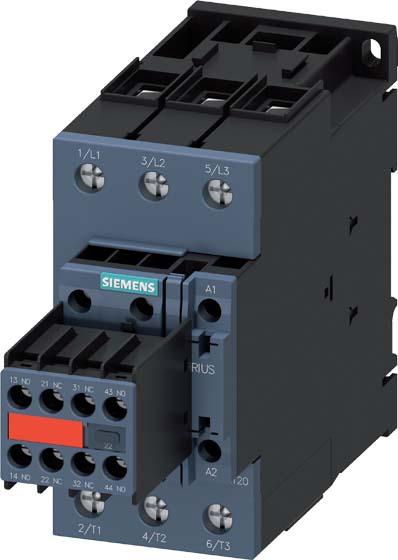

Siemens Coupling contactor

Siemens Digital Industry Coupling Relay 3RT2036-1KB44-3MA0

Manufacturer: Siemens Digital Industry
Designation: Coupling Relay AC 3: 22 kW/400 V
Type: 3RT2036-1KB44-3MA0
Rated Control Supply Voltage Us at DC: 24 V
Voltage Type for Actuation: DC
Rated Operational Current Ie at AC-1, 400 V: 70 A
Rated Operational Current Ie at AC-3, 400 V: 51 A
Rated Operational Power at AC-3, 400 V: 22 kW
Rated Operational Current Ie at AC-4, 400 V: 41 A
Rated Operational Power NEMA: 29.42 kW
Suitable for Rail Mounting: Yes
Number of Auxiliary Contacts as Normally Closed: 2
Number of Auxiliary Contacts as Normally Open: 2
Connection Type Main Circuit: Screw Connection
Number of Normally Closed Main Contacts: 3

Further Details:
Coupling relay, AC-3 51 A, 22 kW / 400 V, 2 NC + 2 NO, DC 24 V with varistor, 3-pole, size S2, screw connection. Auxiliary contacts are permanently suitable for 2 A PLC outputs. SIRIUS 3RT2 coupling relay for switching motors and auxiliary and control circuits, specifically designed for direct connection to electronic controls. The 3RT2 relays are part of the SIRIUS modular system with optimally coordinated products. They impress with high performance while maintaining a compact design and high contact reliability. They can be combined in various ways with other components in the consumer branch. Many device combinations are factory tested. Integrated auxiliary contacts reduce the complexity of your setup. The front connections allow for easy wiring. The 3RT2 relays are climate-resistant, globally approved (e.g., IEC and UL/CSA), and IE3/IE4 ready. In addition to screw connection technology, the devices are also available with spring-loaded connections for a quick, maintenance-free, and vibration-resistant connection. Simple, efficient, always up to date - the SIRIUS modular system.
EAN: 4047621010007.
