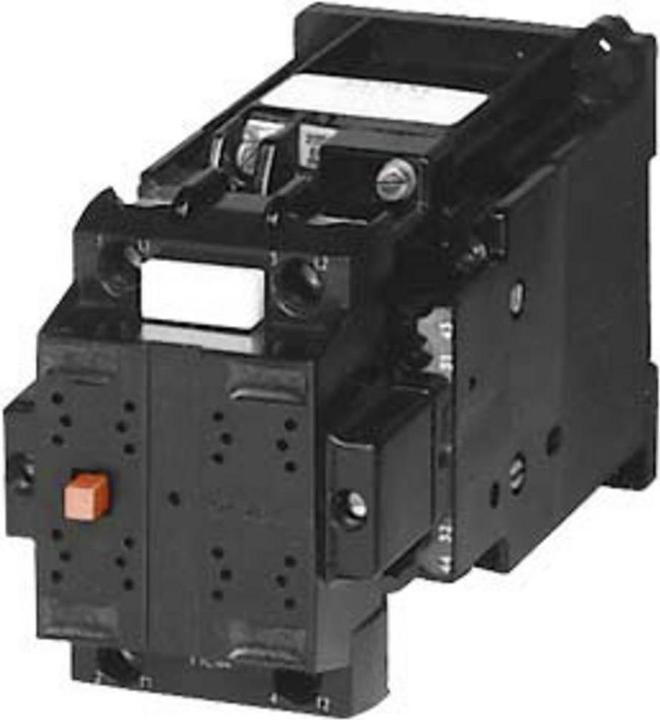

Siemens ContactorSize 2, 2P, 24V

Ratings
BrandMore from Siemens
Delivered between Tue, 7.10. and Wed, 8.10.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Number of poles2

Product details

Siemens Dig.Industr. Contactor 3TC4417-0AB4

Manufacturer: Siemens Dig.Industr.
Designation: Contactor DC-3 and 5, 32A
Type: 3TC4417-0AB4
Rated control supply voltage Us at DC: 24 V
Type of voltage for actuation: DC
Number of normally closed contacts as main contacts: 2
Connection type for main circuit: Screw connection
Rated operational current Ie at DC-3 / DC-5 at 440 V: 29 A
Rated operational power at DC-3 / DC-5 at 440 V: 9 kW
Number of auxiliary contacts as normally closed: 2
Number of auxiliary contacts as normally open: 2
Suitable for rail mounting: yes

Additional details:
Contactor, size 2, 2-pole, DC-3 and 5, 32A
Auxiliary contacts 22 (2 NO + 2 NC)
DC 24V DC actuation
Operating range 0.85-1.1 UN

The 3TC contactor is suitable for switching direct current and impresses with high performance while maintaining a compact design and high contact reliability. It is also characterized by an exceptionally long switching lifespan. The devices are approved worldwide (e.g., IEC and UL/CSA). They are available in AC and DC actuation, in various voltages, and with different auxiliary contacts. Accessories such as arc chambers, magnetic coils, and surge protectors are also available.
EAN: 4011209034419.

Key specifications

input voltage
24 V
Output voltage
24 V
Output current type
DC
Electric current output
32 A
Relay type
Switching relay
Item number
9972435

General information

Manufacturer
Siemens
Category
Relays
Manufacturer no.
3TC4417-0AB4
Release date
23.10.2018

Relay properties

Relay type
Switching relay
input voltage
24 V
Output voltage
24 V
Electric current output
32 A
Output current type
DC
Switching function
Normally open
Number of openers
2 x
Number of closers
2 x
Number of poles
2 x
Max. Switching capacity
9 kW
Manufacturer Type
3tc4417-0ab4

Smart home features

Smart Home
Not compatible

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Length
155 mm
Width
70 mm
Height
85 mm
