Siemens Contactor 230Vac 3 NO contact 1 NC contact

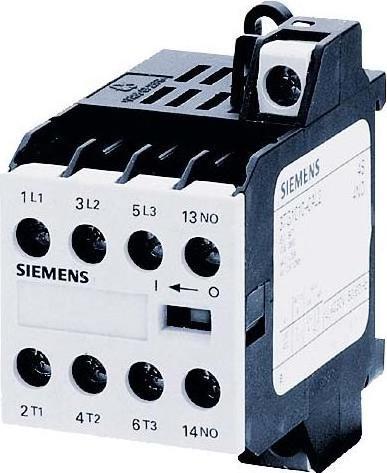

Siemens Digital Industry Motor Contactor 3TG1001-0AL2

Manufacturer: Siemens Digital Industry
Designation: Motor Contactor 3S+1Ö 230VAC 50/60Hz
Type: 3TG1001-0AL2
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Voltage type for operation: AC
Rated operational current Ie at AC-1, 400 V: 20 A
Rated operational current Ie at AC-3, 400 V: 8.4 A
Rated operational power at AC-3, 400 V: 4 kW
Rated operational power NEMA: 3.67749374 kW
Suitable for series installation: yes
Number of auxiliary contacts as normally open: 1
Connection type main circuit: screw connection
Number of normally closed contacts as main contacts: 3

Siemens Digital Industry Motor Contactor 3TG1001-0AL2: additional details
Power relay, AC-3, 8.4 A, 4 kW / 400V, 3-pole, AC 230 V, 45-450 Hz, auxiliary contacts: 1 NO, screw connection.

Small Contactor SIRIUS 3TG10 for switching control signals in the control circuit, e.g., for household appliances, lifting equipment, or in the installation sector. The 3TG10 small contactors are characterized by their narrow design. They operate without humming, have a built-in auxiliary switch, and can be mounted in any installation position. The 3TG10 small contactors are available in AC or DC operation, for various operational currents, with 4 normally closed contacts or 3 normally closed contacts and one normally open contact, and are offered with screw or flat plug connections. Simple, efficient, always up to date - the SIRIUS system modular concept.

EAN: 4011209044968.
