Siemens 7ML5732-1AA11-1BA0 Vibration switch 19-230VAC

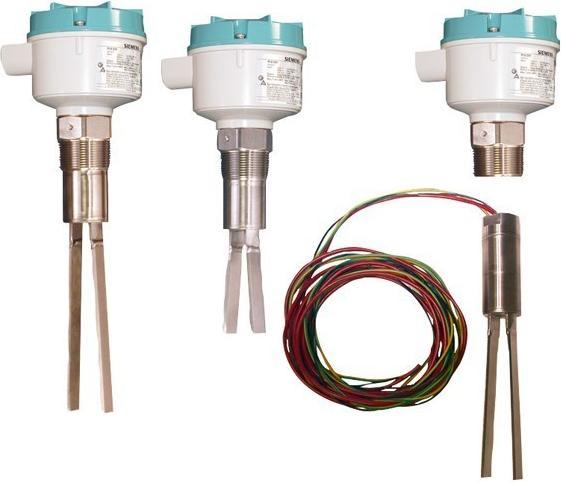

Siemens Dig.Industr. vibration switch 7ML5732-1AA11-1BA0 Manufacturer :Siemens Dig.Industr. designation :Vibration switch 19-230VAC Type :7ML5732-1AA11-1BA0 Type of electrical connection :Plug connection Rated control supply voltage Us at AC 50 Hz :19..230 V Rated control supply voltage Us at AC 60 Hz :19..230 V Rated control supply voltage Us at DC :19..55 V Voltage type for actuation :AC/DC With removable terminals :no Number of electrode inputs :1 min. Adjustable response delay time :0.5 s Adjustable response sensitivity :yes Physical measuring principle :other Siemens Dig.Industr. vibration switch 7ML5732-1AA11-1BA0: more details SITRANS LVS200 vibration level switch, short tuning fork version and interface measurement: Level and material detection in bulk solids or interface measurement in a liquid. Extension options up to 4 m (13.12 ft). With comprehensive test, output and resistance options. Power supply: AC 19 to 230 V, DC 19 to 55 V, one relay output (SPDT) Process temperature: Without temperature interface Process connection Thread: R 1-1/2 ((BSPT), EN 10226) Length of extension arm: Stainless steel 304 (1.4301): Standard length, 165 mm (6.50 inch) Process connection/ bracket material: Stainless steel material no. 1.4301 (304) flange 321 (1.4541), tri-clamp 304 (1.4301) Approvals: ATEX II 1/2 D (applied for), RCM . . EAN: 4019169849319.
