Siemens 6EP4437-7FB00-3DX0

Siemens digital industrial selectivity module 6EP4437-7FB00-3DX0

Manufacturer: Siemens Digital Industries

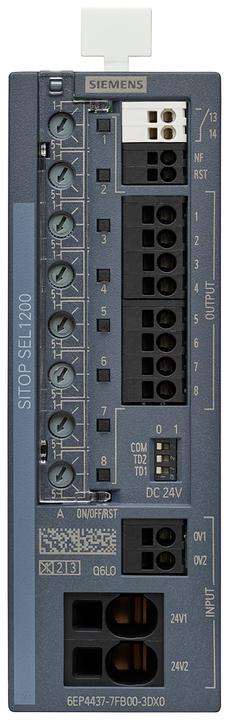

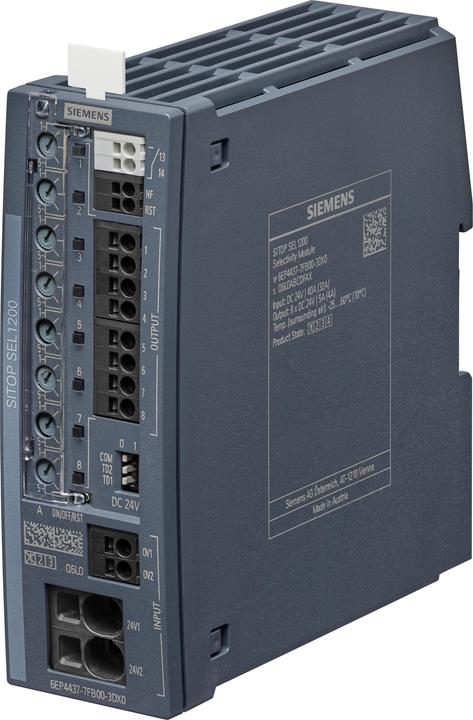

Designation: Selectivity module SITOP SEL1200, 8x 5A
Type: 6EP4437-7FB00-3DX0
Electrical connection type: Spring-cage connection
With detachable terminals: No
Contains function DC voltage undercurrent: No
Contains function DC voltage overcurrent: Yes
Function DC current window: Yes
Rated control supply voltage Us at DC: 20.4 to 30 V
Type of voltage for actuation: DC
Max. permissible response delay time: 5 s

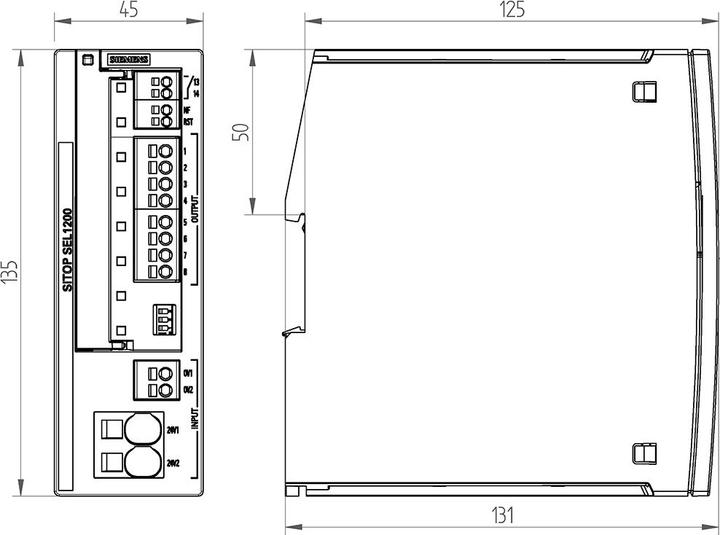

Width: 45 mm
Height: 135 mm
Depth: 125 mm

Further details:

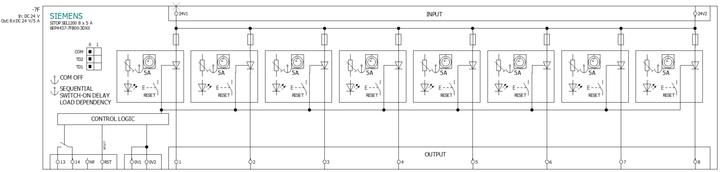

SITOP SEL1200 5 A selectivity module, 8-channel with switching characteristic
Input: DC 24 V/40 A
Output: DC 24 V/8x 5 A
Threshold value adjustable 1-5 A with monitoring interface

The SITOP SEL1200 selectivity module is the optimal addition to all 24 V power supplies for splitting and monitoring the load current on several current branches. Overload and short-circuit in one or more branches are reliably detected. Short-term current peaks, such as those caused by high inrush current, are allowed by the electronics; branches with longer overloads are de-energised. This is ensured even on high-impedance lines and with creeping short circuits. The intact feeders are supplied, thus minimising system downtimes. The faulty branch is signalled via LEDs on the unit as well as via a group signal contact or diagnostic monitor. Regardless of the industry and requirements, Siemens offers reliable and efficient power supplies for every system.
