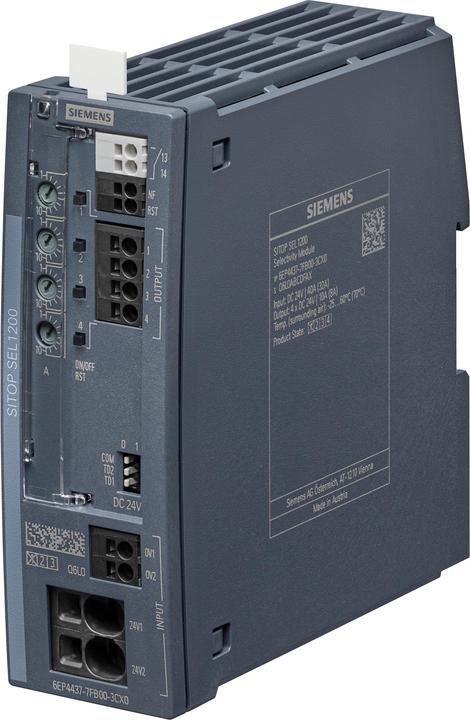

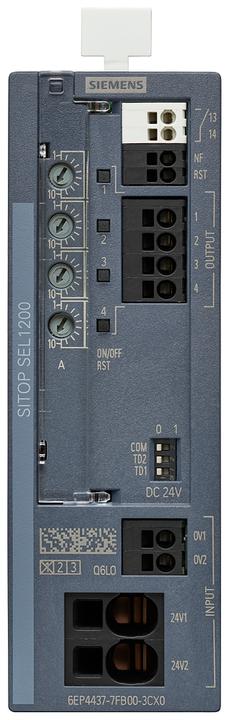

Siemens 6EP4437-7FB00-3CX0

Siemens digital industrial selectivity module 6EP4437-7FB00-3CX0

Manufacturer: Siemens Digital Industries
Designation: Selectivity module SITOP SEL1200, 4x 10A
Type: 6EP4437-7FB00-3CX0
Electrical connection type: Spring-cage connection
With detachable terminals: No
Contains function DC voltage undercurrent: No
Contains function DC voltage overcurrent: Yes
Function DC current window: Yes
Rated control supply voltage Us at DC: 20.4..30 V
Voltage type for operation: DC
Max. permissible response delay time: 5 s
Width: 45 mm
Height: 135 mm
Depth: 125 mm

Further details:

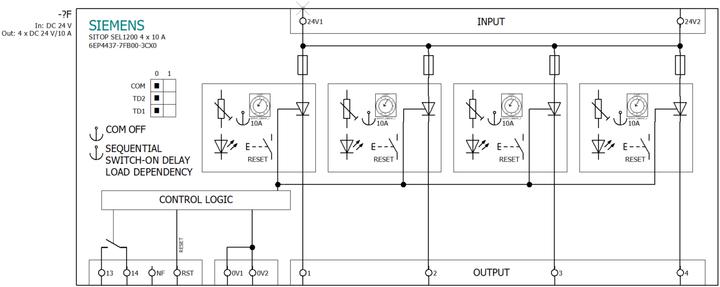

SITOP SEL1200 10 A selectivity module, 4-channel with switching characteristic
Input: DC 24 V/40 A
Output: DC 24 V/4x 10 A
Threshold value adjustable 2-10 A with monitoring interface

The SITOP SEL1200 selectivity module is the optimum addition to all 24 V power supplies for splitting and monitoring the load current on several current branches. Overload and short-circuit in one or more branches are reliably detected. Short-term current peaks, for example, due to high inrush current, are allowed by the electronics; branches with longer overloads are de-energised. This is ensured even on high-impedance lines and with creeping short circuits. The intact feeders are supplied, thus minimising downtimes of the system. The faulty branch is signalled via LEDs on the unit as well as via a group signal contact or diagnostic monitor. Regardless of the industry and requirements, Siemens offers reliable and efficient power supplies for every system.
