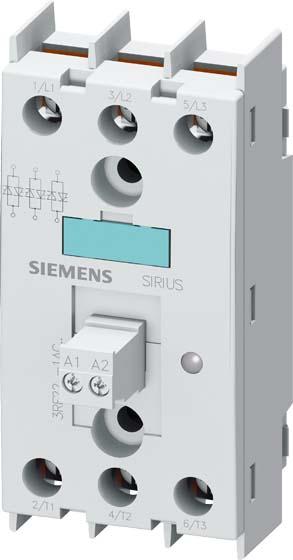

Siemens 3RF2230-1AC35

Siemens Dig.Industr. solid state relay 2RF2, 3 3RF2230-1AC35 Manufacturer :Siemens Dig.Industr. Designation :Solid state relay 2RF2, 3 phase 30A 48-600V/1 Type :3RF2230-1AC35 Rated control supply voltage Us at AC 50 Hz :88..121 V Rated control supply voltage Us at AC 60 Hz :88..121 V Voltage type for actuation :AC Operating voltage :48..600 V Rated operational current Ie at AC-1 :30 A Rated operational current Ie at AC-51 :30 A Number of phases :3 Suitable for series installation :yes Siemens Dig.Industr. solid-state relay 2RF2, 3 3RF2230-1AC35: further details Solid-state relay, 3-phase 3RF2 30 A / 40 °C 48-600 V / 110 V AC 3-phase controlled Screw connection Blocking voltage 1200 V SIRIUS 3RF22 solid-state relay for switching resistive/inductive loads, e.g. radiators or valves. The devices switch wear-free and silently and are therefore ideal for noise-sensitive areas (offices, hospitals). They are extremely reliable even at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardised 3RF29 function modules. The units are approved worldwide (e.g. IEC and UL/CSA).The solid-state relays are available as 1-phase units in two widths or as 3-phase units. They are available for different power ratings and rated operating voltages. Designed for AC or DC actuation, they are available with screw, spring-loaded or ring terminal lug connections.In addition to the 3RF29 function modules, control plugs and terminal covers are also available as accessories.Simple, efficient, always up-to-date - the SIRIUS modular system. , EAN: 4011209777408.
