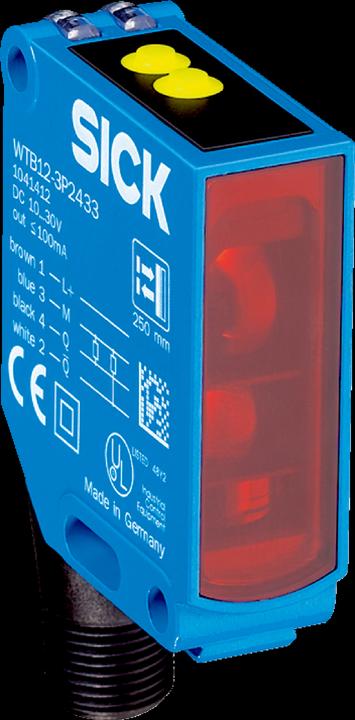

Sick Diffuse reflection light scanner WTB12-3P2433

Sick diffuse reflection light scanner WTB12-3P2433
Manufacturer: Sick
Designation: Diffuse reflection light scanner
Type: WTB12-3P2433

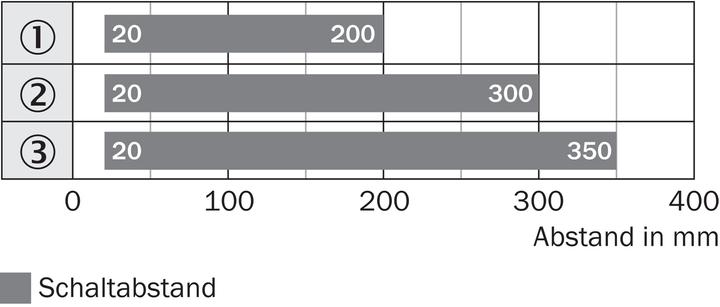

Rated switching distance: 350 mm
Max. switching distance: 350 mm
Version of the interface for safety-related communication: Other
Version of the electrical connection: M12 plug connector
Version of the switching output: PNP
Version of the switching function: Antivalent
Equipment protection class: Protection class 3
Housing design: Cuboid
Width of sensor: 15.6 mm
Height of sensor: 48.5 mm
Length of sensor: 42 mm
Scanning function: Light/dark switching
Material of optical surface: Plastic
Material of housing: Metal
Max. output current at safe output: 100 mA
Ambient temperature: 60 °C
Response time: 0.33 ms
Switching frequency: 1500 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Voltage type: DC
Wavelength of sensor: 640 nm
Light type: Red light polarized
Protection class (IP): IP66

Sick WTB12-3P2433 diffuse reflection photoelectric proximity switches: further details

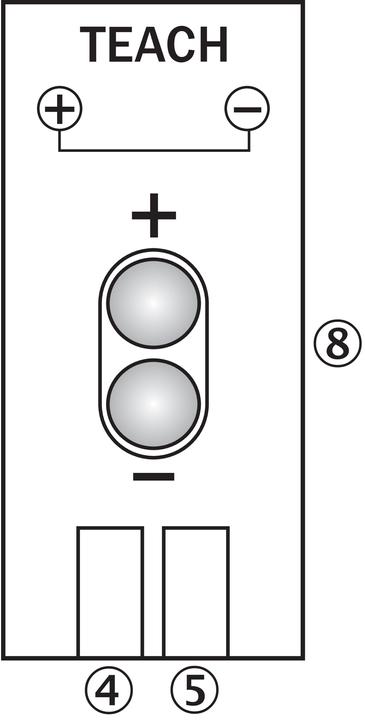

Small photoelectric proximity switches, W12, WTB12-3P2433, Device type: Photoelectric proximity switches and photoelectric sensors, Switching distance max. 20 mm ... 350 mm, Sensor type: Diffuse reflection light scanner, Detection principle: Background suppression, Switching output: PNP, Switching type: Light/dark switching, Connection type: M12 plug, 4-pin, Light emitter: LED, Light type: Visible red light, Setting: Teach-in button, Included in delivery: 2 x BEF-KH-W12 clamp holder, including screws.
