Shuttle

15.6” All-in-One PC for POS, POI, and Kiosk Applications

The Shuttle POS X509 is a 15.6-inch All-in-One PC complete system with RAM and M.2 SSD, but without an operating system. It is equipped with a Gen12 Intel ULV processor. The modern processor architecture has a very positive impact on power consumption and computing performance. Thanks to passive heat pipe cooling, the system is virtually silent, maintenance-free, and suitable for 24/7 continuous operation. The AIO PC offers plenty of connections: HDMI, VGA, 6x USB, Gigabit LAN, 2x COM, and 2x audio. Useful for applications in the vertical market, most of the ports are arranged on the underside of the case, and the front is resistant to dust and splashes according to the IP54 protection class.

General Features
- IP54 protected front
- Dimensions: 391 x 327 x 42 mm (WHT)
- Suitable for 24/7 continuous operation
- Supports 100 mm VESA mount
- Operating temperature: 0-40 °C
- Fanless heat pipe cooling system

Display and Graphics
- 39.6 cm (15.6") LC display, 1366 x 768 pixel resolution
- Resistive touchscreen
- Integrated Intel UHD graphics
- HDMI 2.0b and VGA

Operating System
- An operating system is not included
- Supports Windows 10/11 (64-bit) and Linux (64-bit)

Processor
- Intel Celeron 7305 SoC, 1x P-core, 4x E-cores, 8 MB cache
- Intel Generation 12 “Alder Lake-U” TDP: 15W

Memory
- 8 GB DDR5-4800 SO-DIMM RAM
- 120 GB M.2 SSD with NVMe support
- Free M.2-2280 slot supports SATA SSD cards
- Supports a 2.5" SATA drive (HDD or SSD)
- Supports internal USB stick (USB 2.0, Type A)

Connections
- HDMI 2.0b
- D-Sub/VGA
- 2x USB 3.2 Gen 2 (max. 10 Mbit/s, red)
- 4x USB 3.2 Gen 1 (max. 5 Mbit/s, blue)
- Internal: 1x USB 2.0 (Type A)
- Gigabit LAN (Intel)
- 2x audio (microphone and headphones)
- 2x COM port (1x RS232, 1x RS232/422/485)
- Power button
- Clear CMOS button
- LEDs for operating status and memory access.

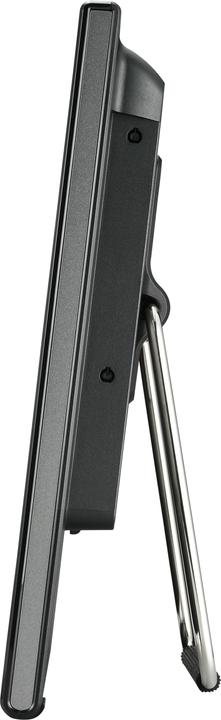

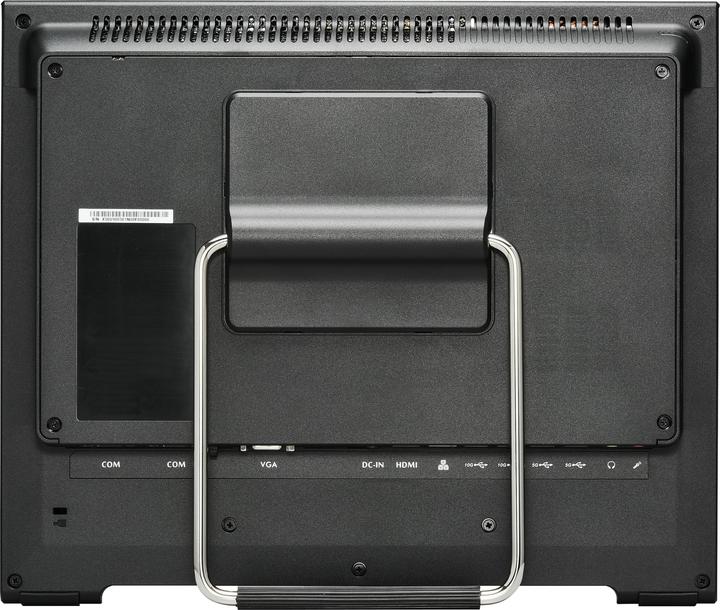

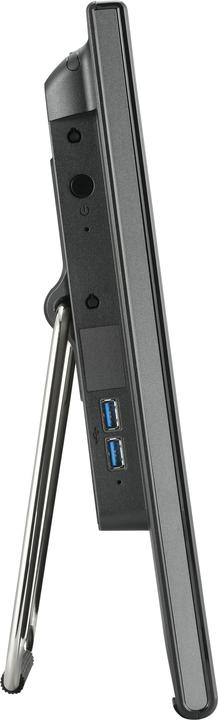

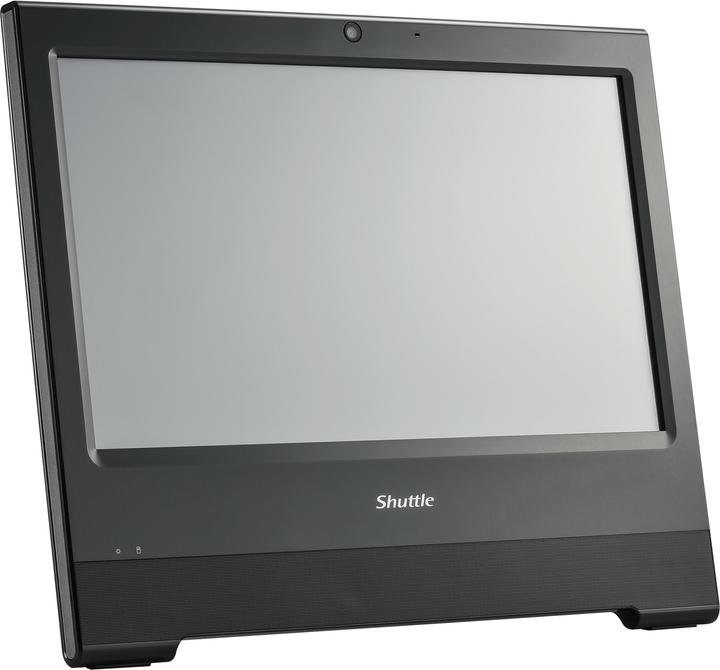

Actual product image Shuttle AIO POS X509/ 8GB/128GB SSD/IntelCeleron 7305U/black (Intel Celeron 7305, 8 GB, 120 GB, Intel UHD Graphics)
