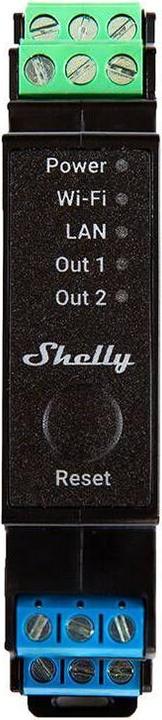

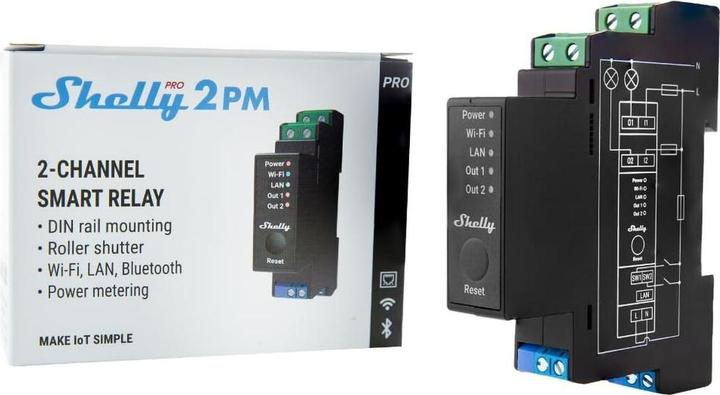

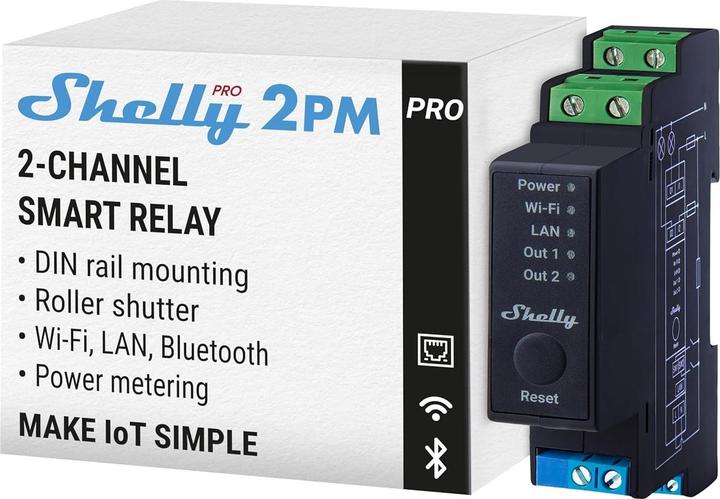

The Shelly Pro 2PM is a 2-channel Wi-Fi relay with precise power measurement designed for mounting on DIN rails, such as in a fuse box. Thanks to the Bluetooth connection, Shelly Pro devices can be easily configured and integrated into the Wi-Fi network using the Shelly app. If Wi-Fi is not available, the Shelly can also be directly connected to a switch via a LAN network cable.

Features of the Shelly Pro 2PM WiFi Switch:
- Easily mountable on DIN rail.
- Shelly Pro Line supports mjS scripts.
- 2x 16A switching output with precise power measurement (maximum 25A total).
- Equipped with temperature, overload, and overvoltage protection.
- Features Wi-Fi, LAN, and Bluetooth interfaces.
- No HUB required; connect the Shelly directly to your home Wi-Fi or LAN.
- Compatible with Android, iOS, Amazon Alexa, Home Assistant, MQTT, openHAB, and Google Assistant.
- With the Shelly Cloud app, you can turn devices on and off via your smartphone or tablet.
- Shelly has a built-in web interface that allows you to turn the Shelly on and off, make settings, or perform an OTA update.
- The Shelly has an integrated weekly timer that allows you to set on and off times based on time and day.
- Shelly knows your location, enabling control over your lights based on sunrise and sunset throughout the year.

Technical Details:
- Manufacturer: Allterco
- Type: Shelly Pro 2PM
- Number of Channels: 2
- Load per Channel: 16A
- Maximum Load Total: 25A
- Operating Voltage: 110-230V 50/60Hz AC
- Power Consumption: <3W
- Range (depending on the environment): 50m Outdoor / 30m Indoor
- WiFi Protocol: WiFi 802.11 b/g/n
- WiFi Frequency: 2412 to 2484MHz
- LAN Interface: Yes
- Bluetooth: Yes
- Power Measurement: Yes
- Temperature Protection: Yes
- Overload Protection: Yes
- Dimensions: 89.5 x 18.5 x 68.5mm
- Weight: xxg

Delivery Contents:
- 1x Shelly Pro 2PM WiFi Switch.

Key specifications

Input voltage

Output voltage

Electric current output

Output current type

Number of poles

Pro 2PM

Relays

Single board computer kits

Robotics kit

30-day right of return

General information

Relay properties

Smart home features

Origin

Voluntary climate contribution

Scope of delivery

Product dimensions

Package dimensions

The relay switches two channels, each up to 16 A at 110-240 V AC, with a maximum total load of 25 A, including precise power measurement.

High switching capacity with power metering

Control of two circuits is available optionally via Wi-Fi, LAN or Bluetooth, requiring no additional hub for integration.

Flexible control via interfaces

Designed for DIN rail mounting, the device features built-in temperature, overload and overvoltage protection to safeguard the hardware.

Integrated operational protection
