Schneider Electric Ultrasonic sensor

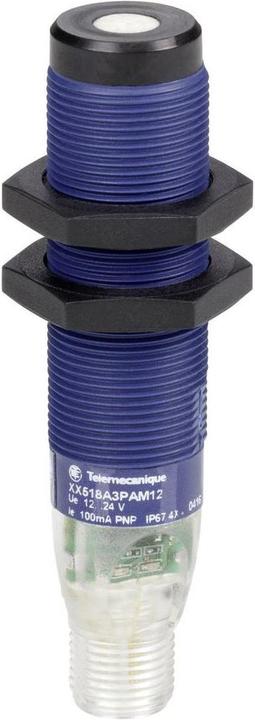

Telemechanique Sensors Ultrasonic Sensor XX518A3PAM12

Manufacturer: Telemechanique Sensors
Designation: Ultrasonic Sensor 18mm, 12-24VDC
Type: XX518A3PAM12
Analog Output Type: Other
Electrical Connection Type: M12 Connector
Switch Output Type: PNP/PNP
Switch Function Type: Normally Open (NO)
Blind Zone: 51 mm
Sensor Width: 18 mm
Sensor Height: 18 mm
Sensor Length: 77.6 mm
Sensor Diameter: 18 mm
Adjustable Distance: 51..508 mm
Adjustment Method: Teach-In
Measuring Range Length: 51..508 mm
Protection Class (IP): IP67
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: None
Housing Design: Cylinder, Threaded
Interface Standard: Other
No-Load Current: 40 mA
Max. Output Current: 100 mA
Ambient Temperature: -20..65 °C
Supply Voltage: 12..24 V
Relative Repeat Accuracy: 1.27 %
Switching Frequency: 40 Hz
Voltage Type: AC/DC
Synchronization Possible: No
Material of the Active Area of the Sensor: Plastic
Material of the Housing: Plastic
Material of the Cable Sheath: Other

Telemechanique Sensors Ultrasonic Sensor XX518A3PAM12: additional details OsiSense XX - adjustable ultrasonic sensors - Transistor output. M18 ultrasonic sensor, cylindrical. Dimensions M18 x 77.6 mm, connection M12 plug, output NO, function PNP, switching distance 0.5 m, protection class IP 67. Adjustable ultrasonic sensors, switching distance adjustable by button press, with LED display, transistor output. Housing made of plastic, cylindrical, rectangular housing as well as combined housing. Protection class IP 67 (except XX630A1 with protection class IP 65). Operating voltage 12-24 V DC. Connection via M12 plug, 4-pole or cable. Moving parts ensure a long service life of the devices.
