Schneider Electric Solid state relay

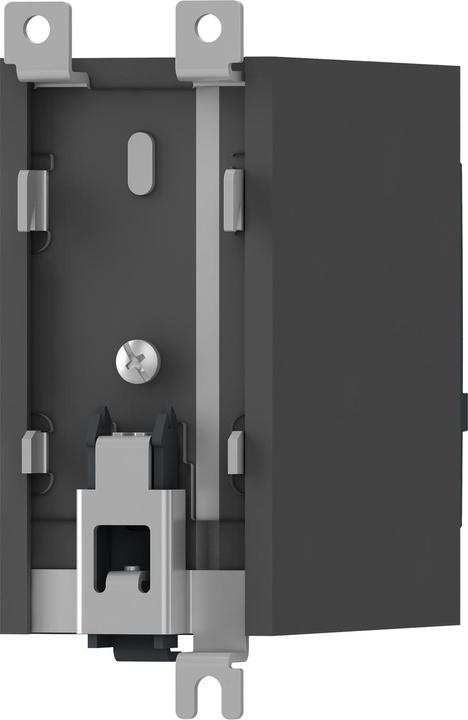

Schneider Electric SSD1A360M7C3 solid state relay Manufacturer :Schneider Electric Designation :solid state relay DIN rail E:90-280V Type :SSD1A360M7C3 Rated control supply voltage Us at AC 50 Hz :90..280 V Rated control supply voltage Us at AC 60 Hz :90..280 V Rated control supply voltage Us at DC :90..280 V Voltage type for actuation :AC/DC Operating voltage :48...600 V Rated operational current Ie at AC-1 :0 A Rated operational current Ie at AC-3 :0 A Rated operational current Ie at AC-51 :0 A Rated operational current Ie at AC-53a :0 A Rated operational current Ie at AC-53b :0 A Number of phases :1 Suitable for series mounting :yes Zero crossing switching :yes Schneider Electric SSD1A360M7C3 solid state relay: further details SSD solid state relay of the Harmony series. Suitable for mounting on a top-hat rail. The load circuit is designed for 1-phase networks in the range of 48-600VAC and 60A can be switched. The control voltage is 90-280VACDC. The switching behaviour is zero-voltage switching. The connection is made with spring terminals. Approvals: CE, UL, CSA, EAC, RoHS, IEC 61373, IEC 60947-4-3. , EAN: 3606489808150.
