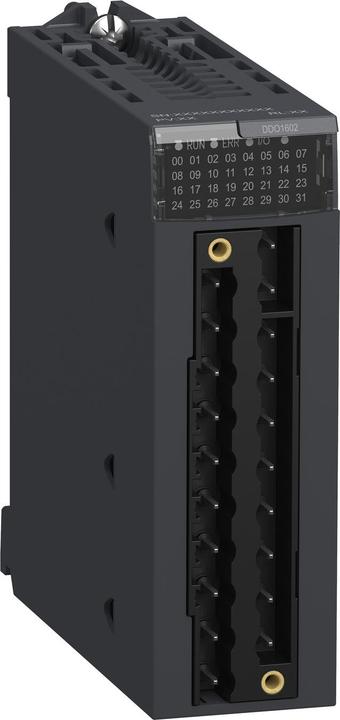

Schneider Electric PLC expansion module 16 outputs
Currently out of stock
Supplied by
Distrelec CH
free shipping
Product details
Manufacturer Series: M340
Number of Outputs: 16
Output Type: Discrete, Transistor
Compatible with: M340 Series
Number of I/O: 16
Voltage Category: 24 Vdc
The modules with 16 outputs require a 20-pin removable terminal block or a pre-assembled cable set with a 20-pin removable terminal block on one end and connection wires on the other end. The modules with 32 and 64 outputs require one or two pre-assembled cable sets with a 40-pin connector. Modicon M340 Digital Output. Using a push button on the 64-channel module, channels 0 to 31 and 32 to 63 can be displayed on the block by repeated pressing.
Max. power | 6 W |
Collector current | 0.50 A |
Collector voltage | 24 V |
Item number | 9721043 |
Manufacturer | Schneider Electric |
Category | Transistor |
Manufacturer no. | BMXDDO1602 |
Release date | 24.9.2018 |
External links |
Max. power | 6 W |
Collector current | 0.50 A |
Collector voltage | 24 V |
Items per sales unit | 1 x |
Country of origin | Indonesia |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Height | 100 mm |
Width | 33 mm |
Length | 150 mm |
