Name: Plastic Guarded 1S 1NC+1NO, with Trigger
Brand: Schneider Electric
SKU: 10262616
Price: 90.9 CHF
Availability: InStock
Rating: 1.33 (3 reviews)

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Schneider Electric

Series = Harmony XPEA
Housing material = plastic
Rated contact voltage AC = 240V
Nominal contact voltage DC = 250V
Rated contact current = 270 mA @ 250 V dc, 3 A @ 240 V ac
Switch operating conditions = industry standard
IP Protection class = IP 66

UL, CSA. XPE plastic foot switch. Foot switch with plastic housing, with or without protective cover. The versions with protective cover are highly recommended for areas with high risks, where unintentional starting of the machine by people or falling objects may occur. Foot switches with 2-stage contacts are ideal for machines with two speeds. The first stage (6 mm travel) operates a set of normally closed and normally open contacts before the second stage, after the full travel (12 mm), operates the other normally closed and normally open contacts. The versions with release mechanism allow the pedal to be locked in the rest position and can only be pressed down again after a direct action. Available with or without release mechanism in 1- or 2-stage version. Large pedal surface ensures good foot stability and high operating comfort. High and wide protective cover suitable for large safety shoes. Can be mounted to the floor or on a base for added stability. Blue IP66 plastic housing.

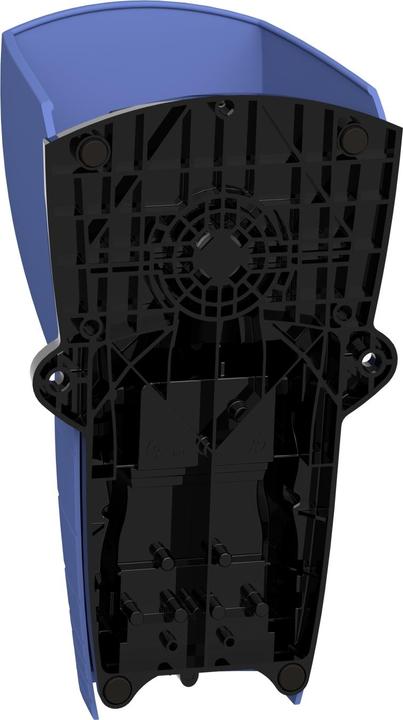

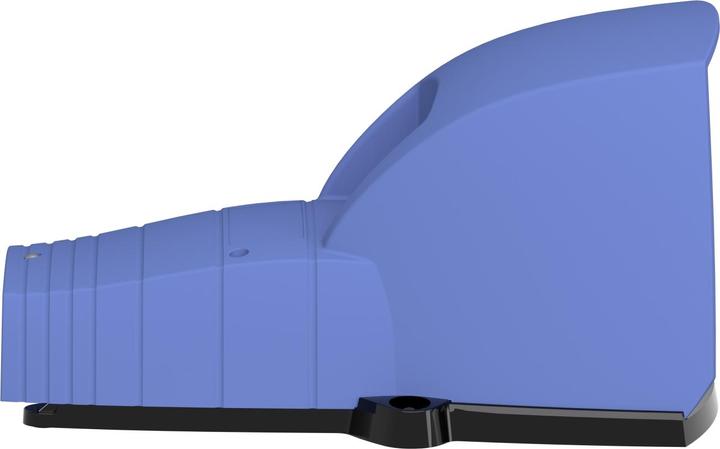

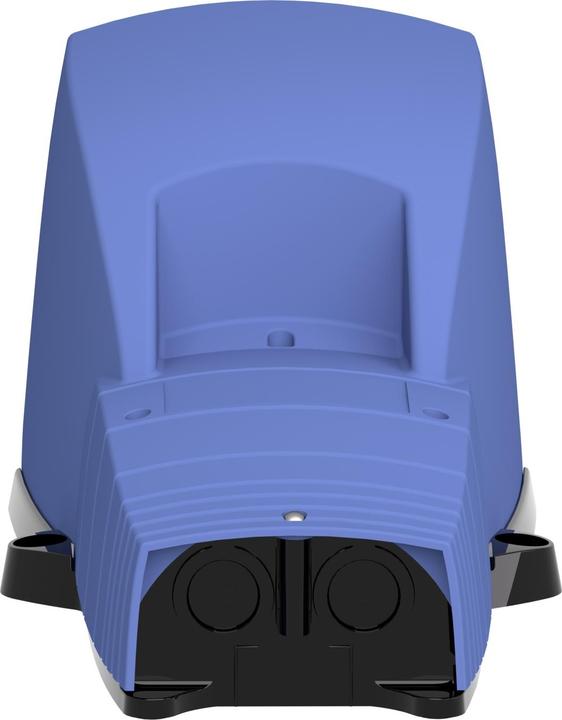

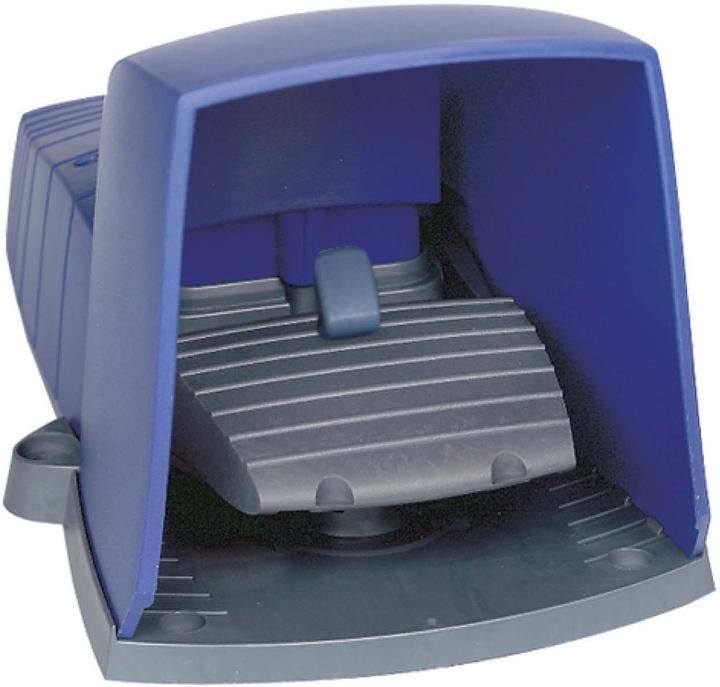

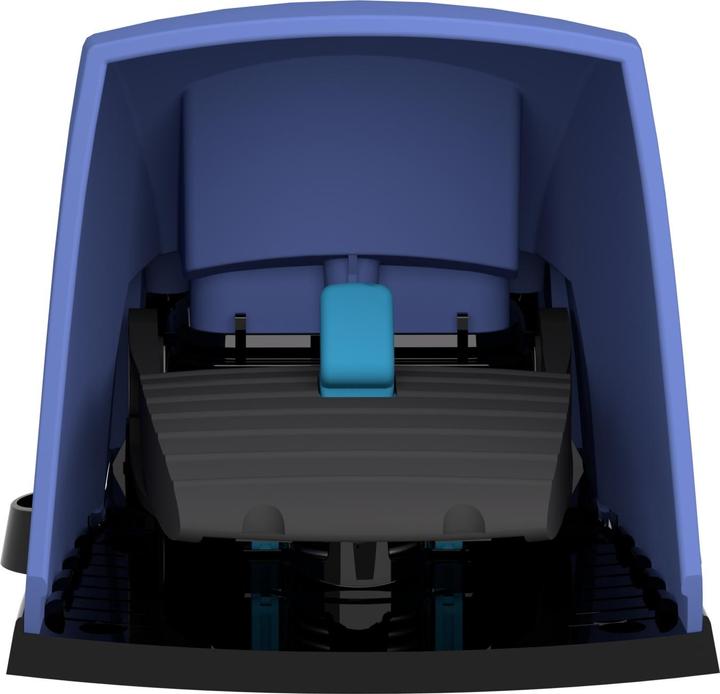

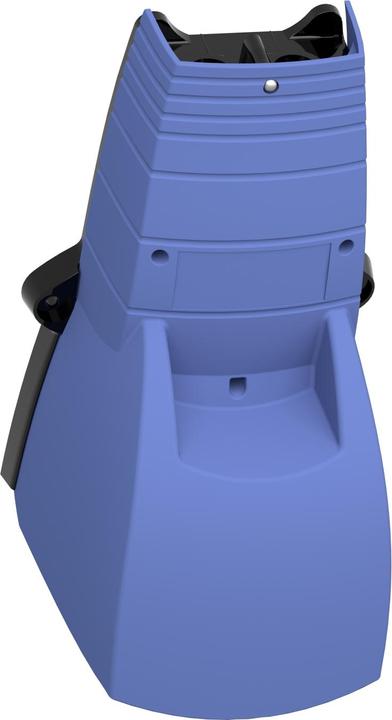

Actual product image Schneider Electric Plastic Guarded 1S 1NC+1NO, with Trigger
