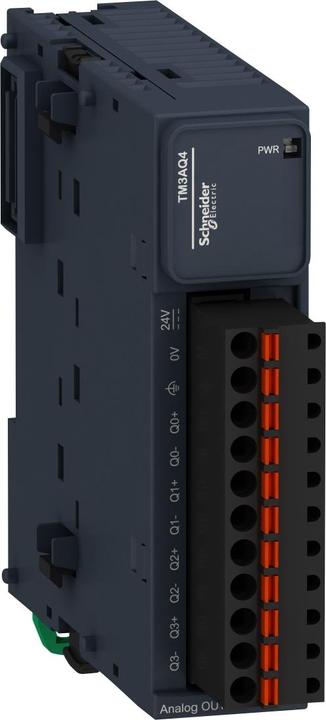

Schneider Electric I/O Expansion TM3 TM3AQ4G

Manufacturer: Schneider Electric
Description: I/O Expansion TM3 EA Module 4 Analog A
Type: TM3AQ4G
Number of Analog Outputs: 4
Configurable Analog Inputs: No
Configurable Analog Outputs: No
Current Input: No
Voltage Input: No
Resistance Input: No
Resistance Thermometer Input: No
Thermocouple Input: No
Configurable Input Signal: No
Resolution of Analog Inputs: 12 Bit
Current Output: Yes
Voltage Output: Yes
Configurable Output Signal: No
Resolution of Analog Outputs: 12 Bit
Electrical Connection Type: Spring Clamp Connection
Suitable for Safety Functions: No
SIL according to IEC 61508: None
Performance Level according to EN ISO 13849-1: None
Associated Equipment (Ex ia): No
Associated Equipment (Ex ib): No
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: None
Width: 23.6 mm
Power Consumption: 1.1 W
Height: 90 mm
Depth: 70 mm

Schneider Electric I/O Expansion TM3 TM3AQ4G: Additional Details
Analog Output Module Modicon TM3. For expanding Modicon M221, M241, M251, and M262 PLCs with I/O channels. Compatible with third-party controllers via Modicon TM3 Bus Coupler. A total of 4 analog outputs (-10V to +10V / 0V to 10V / 0mA to 20mA / 4mA to 20mA) with 12 Bit resolution. Projecting and configuring using EcoStruxure Machine Expert software or standalone configurator. Connection via removable spring clamp terminals with a pitch of 5.08 mm. Operating ambient temperature -10°C to +55°C. Mounting on 35 mm DIN rail or directly on a control panel with optional holder. Certifications according to CE, cULus/CSA, EAC, RCM, cULus Hazardous Location. EAN: 3606480648991.
