Schneider Electric Front lem., round f. Dial, Ř 16, 3 ZB6AGQ

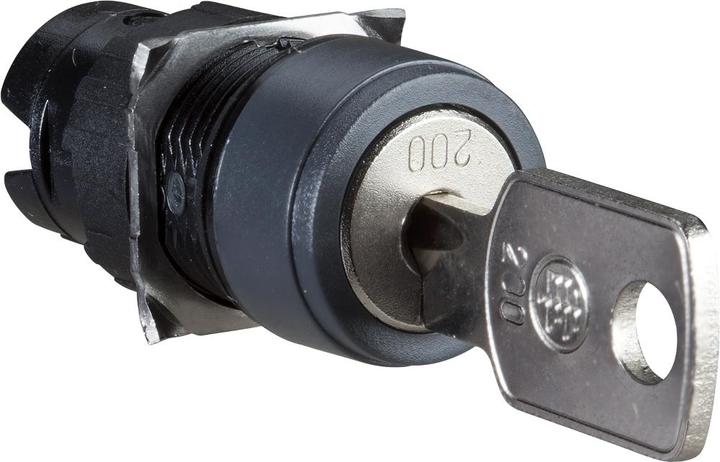

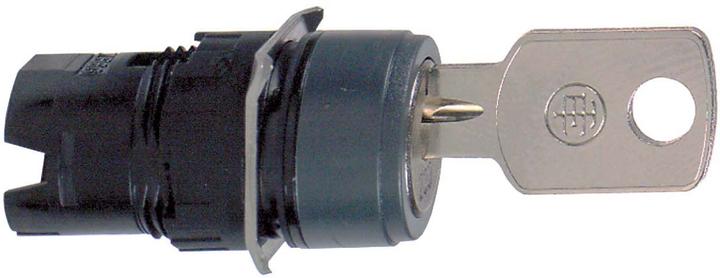

Schneider Electric Front Element Selector Switch ZB6AGQ

Manufacturer: Schneider Electric
Description: Front element selector switch 3 positions, with spring return.
Type: ZB6AGQ
Number of switching positions: 3
Actuating element design: Key
Suitable for lighting: no
Color of actuating element: black
Lens shape: round
Hole diameter: 16.2 mm
Opening width: 0 mm
Opening height: 0 mm
Switching function latching: no
Momentary: yes
With front ring: yes
Material of front ring: Plastic
Color of front ring: black
Protection class (IP), front side: IP65
Protection class (NEMA): other

Additional details: Front element for Harmony ZB6 key switch. Plastic bezel. 3 positions, key withdrawal to the left. Dimensions (WxHxD) 18x18x55 mm, mounting diameter 16 mm. Lock type Ronis 200, round head shape. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The plastic program with a 16 mm installation size combines easy installation with great flexibility in minimal space requirements. Certifications according to CCC, GOST, UL, CSA. Product standards according to EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C 852, UL 508, EN/IEC 60947-1, JIS C 4520. EAN: 3389110785098.
