Schneider Electric Current transformer

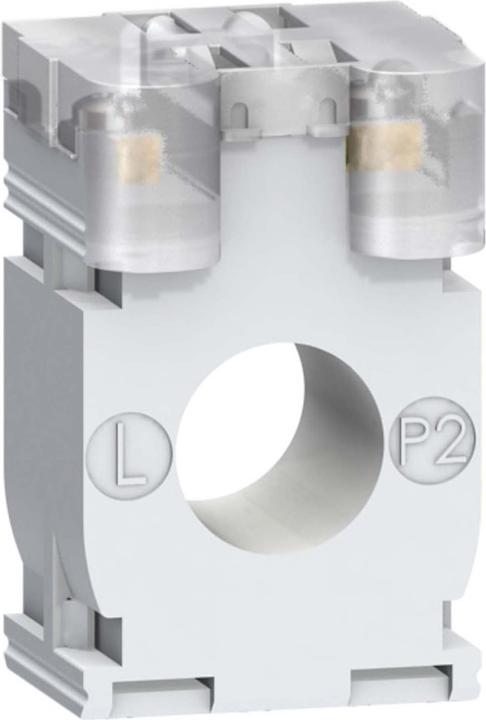

Schneider Electric current transformer METSECT5CC010
Manufacturer: Schneider Electric
Designation: Current transformer 100/5A
Cable diameter: 21mm
Type: METSECT5CC010
Design: Clip-on current transformer
Primary rated current: 100 A
Secondary rated current: 5 A
Secondary rated apparent power: 3.5 VA
Overcurrent limiting factor: FS 5
Calibrated: Yes
Contact hazard protection: No
Opening diameter: 21 mm
Snap-on mounting: No
With copper bar: No
Secondary connection: Screw connection
Number of primary inputs: 1

More details: PowerLogic current transformer TI, type CC - for cables up to 21 mm. Transformer TI 100/5. Dimensions (WxHxD): 44 x 66 x 37 mm. Conversion ratio of primary current to secondary current of 5 A for measuring instruments. Rated operating voltage max: 720 V, frequency: 50-60 Hz. Safety factor: 40-4000 A FS 5, 5000-6000 A FS 10. Includes sealable cover or for transformer types MA, MB, MC, MD as accessories. Mounting on cable or rail with insulated clamping screw (except type CC). On mounting plate or DIN rail (except types DX and VV). Protection class: IP20. Operating temperature: -25°C to 50°C or +60°C, relative humidity: 95%. EAN: 3303431123438.
