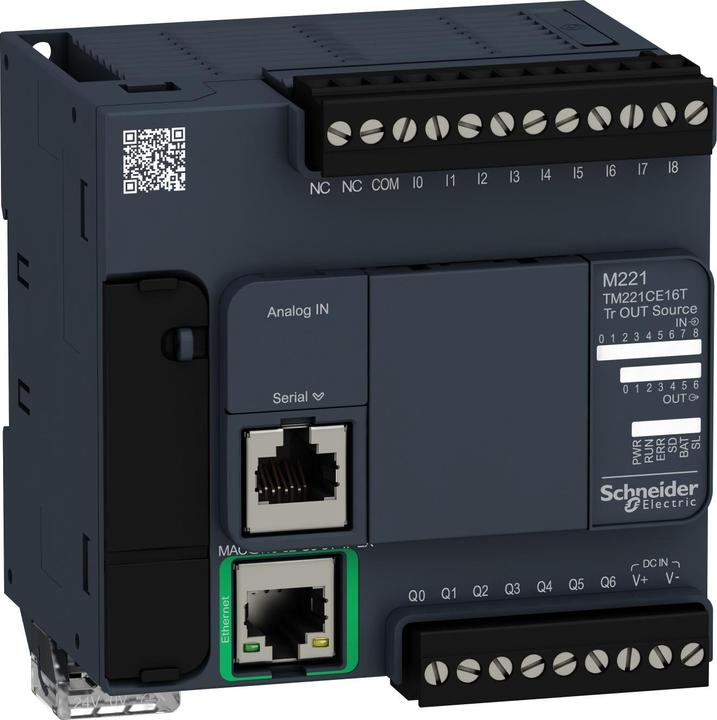

Schneider Electric CONTROLLER M221-16IO TR.PNP ETHERNET COM

Number of Inputs/Outputs: 16
Manufacturer Series: Modicon M221
Number of Inputs: 9
Input Type: Discrete
Output Type: Digital
Set Included: Yes
Number of Outputs: 7
Display Included: Yes
Program Memory: 10,000 Steps
Programmable Interface: Mini-USB
Max Inputs/Outputs: 16

Modicon M221 – Logic Controllers. The Modicon M221 logic controller is used for controlling simple machines and offers class-leading performance. It requires minimal installation and provides excellent versatility. Connect a simple remote control panel for immediate maintenance and machine visualization. The M221 logic controller features an SD card slot and USB port, 2 analog inputs, and a wide range of I/Os, start/stop switches, and cartridge expansion, as well as Ethernet and serial connections. Programming is done with the SoMachineBasic software. Easy navigation ensures a more efficient engineering process. All programming, visualization, and commissioning are carried out through a single intuitive tool. Additional modules for this controller include: safety module, Tesys SoLink motor starter, extensive range of analog and digital modules, Lexium servo drives.
