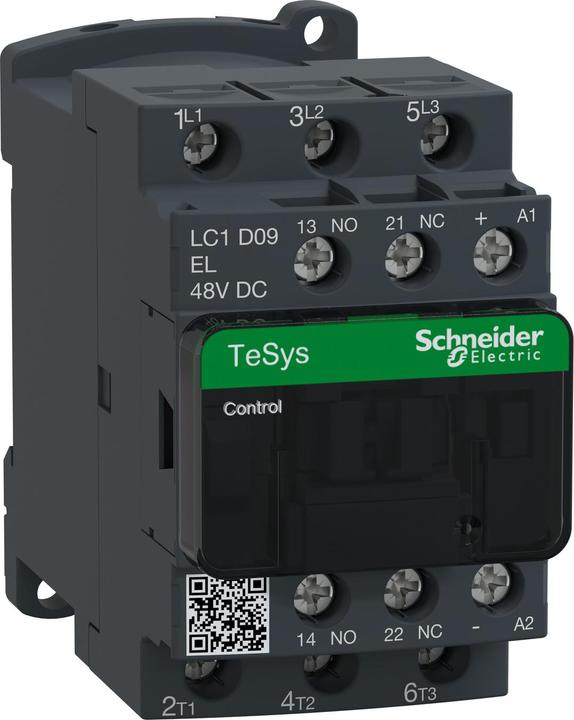

Schneider Electric Contactor 3pole,3NO,48VDC,9A

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

Area: TeSys D
Series: LC1D
Number of poles: 3
Coil voltage: 48 V dc
Rated contact current: 9 A
Rated contact voltage: 690 Vac/dc
Number of auxiliary contacts: 2
Connection type: Screw mounting
Width: 45 mm
Depth: 95 mm

UL and CSA. Contactors with the suffix BL accommodate auxiliary contact blocks for front mounting (only the 2-contact version) and do not accommodate contacts for side mounting. 3-pole contactors, DC-controlled. Integrated coil fault suppression. 3 normally closed poles, auxiliary contact configuration: one normally closed, one normally open. Closing actuation time: 12 to 22 ms, opening actuation time: 4 to 19 ms.

Key specifications

Relay type
Power contactor
input voltage
48 V
Electric current output
9 A
Output current type
AC, DC
Number of poles
3x

General information

Item number
9718247
Manufacturer
Schneider Electric
Category
Relays
Manufacturer No.
LC1D09EL
Release date
24.9.2018

Relay properties

Relay type
Power contactor
input voltage
48 V
Electric current output
9 A
Output current type
AC, DC
Switching function
Normally open
Number of openers
1x
Number of closers
3x
Number of poles
3x
Max. Switching capacity
4 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Product dimensions

Length
95 mm
Width
45 mm
Height
77 mm
Weight
480 g
