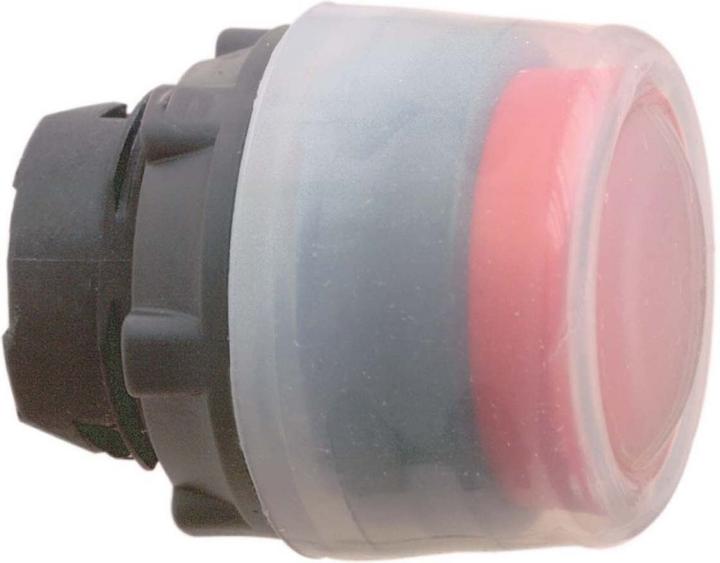

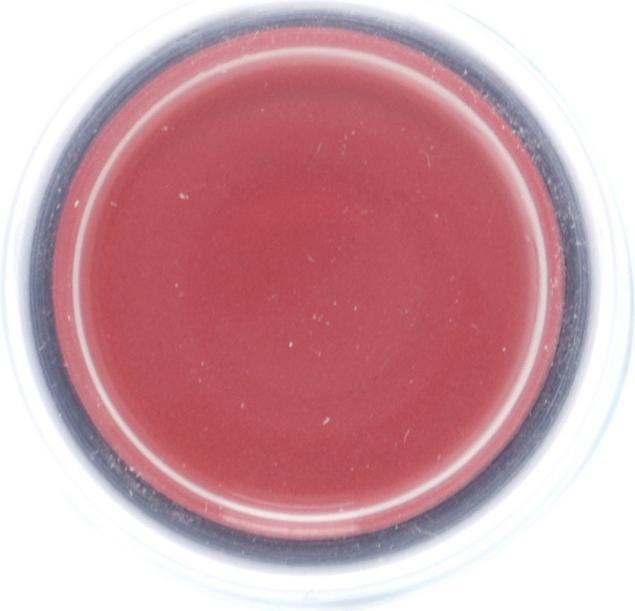

Schneider Electric Button head 22mm red

Schneider Electric Push Button ZB5AP4

Manufacturer: Schneider Electric
Description: Push button flush, red, with protective collar.
Type: ZB5AP4
Button color: red
Number of command points: 1
Lens shape: round
Hole diameter: 22.5 mm
Opening width: 0 mm
Opening height: 0 mm
Button shape: high
Suitable for lighting: no
With protective cover: no
Labeled: no
Latch switching function: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: other

Additional details:
Front element for Harmony ZB5 push button. Red front, plastic bezel, unlabeled. Front element for illuminated push button, red. Dimensions (WxHxD) 30x30x35 mm, mounting diameter 22 mm, weight 0.014 kg. With transparent protective cap DM 22 without latching. Mechanical lifespan 10,000,000 cycles. Round head shape, standard. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The modular plastic program with 22 mm installation dimensions combines easy installation, efficiency, modern design, flexibility with maximum robustness. Certifications according to CSA, BV, RINA, UL listed, DNV, LROS (Lloyds Register of Shipping), GL. Product standards according to EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C 4520. EAN: 3389110906677.
