Schneider Electric Battery control module 40A ABL8BBU24400

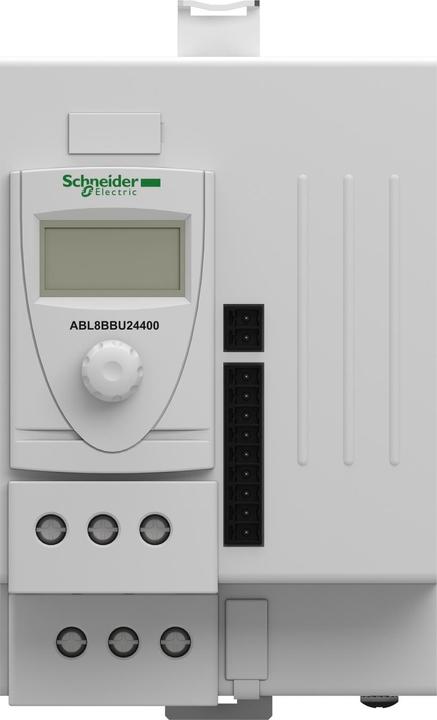

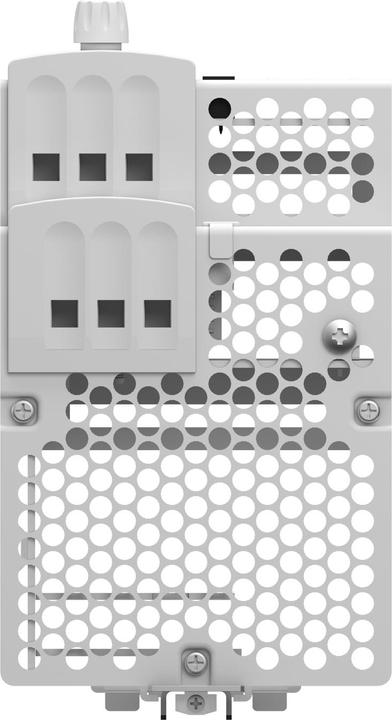

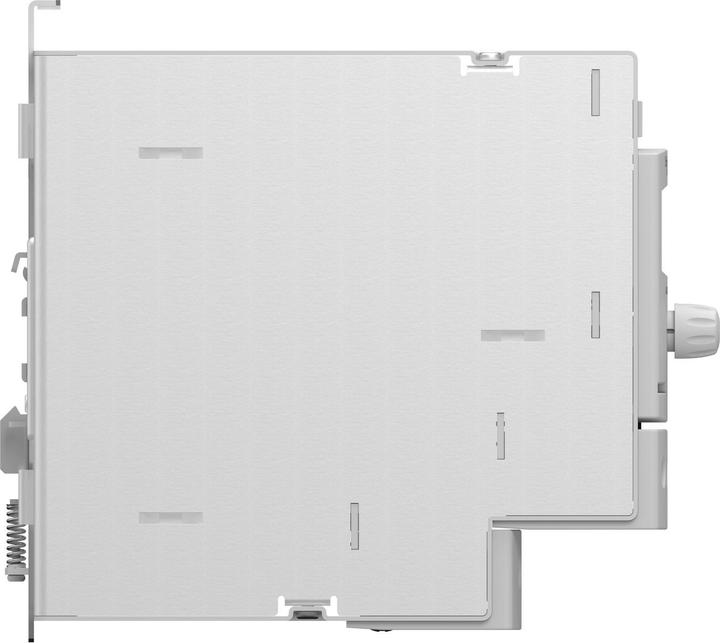

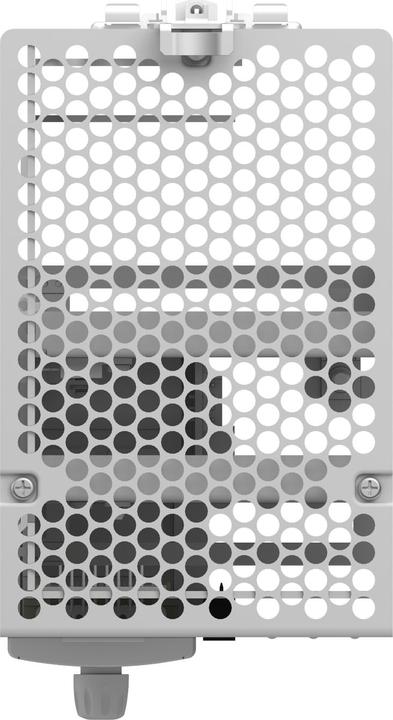

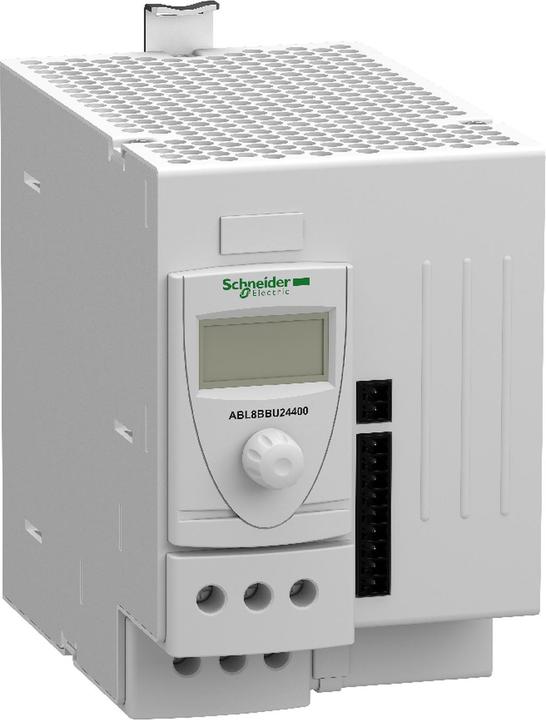

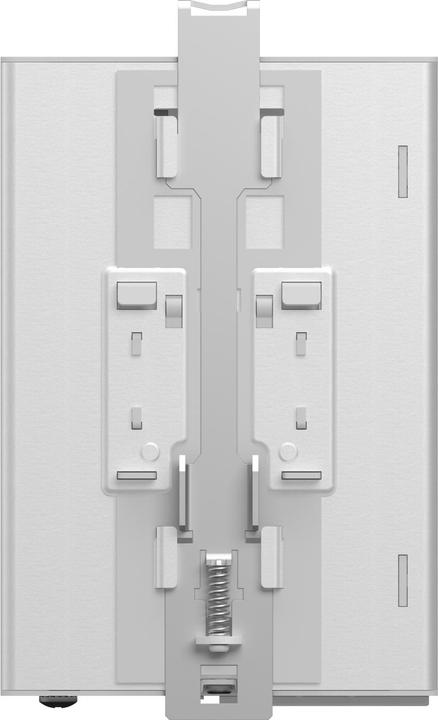

Schneider Electric Battery Control Module ABL8BBU24400

Manufacturer: Schneider Electric
Designation: Battery Control Module 40A
Type: ABL8BBU24400
Input Voltage: 24..28.8 V
Number of Primary Phases: 1
Output Voltage: 23.5..28.3 V
USB Interface: no
With RS-232 Communication Interface: no
Number of Secondary Phases: 1
SNMP: no
Voltage Type: DC
Height: 125 mm
Width: 60 mm
Depth: 160 mm
Weight: 0.7 kg
Network Management Capable: no
UPS Technology: Offline
Design: Standalone Device
Modular: no
Potential-Free Switching Contact: no
Automatic Shutdown Function: no
Input Connection: other

The ABL8BBU24400 Battery Control Module is a functional module for 24VDC power supplies that enables complete management of an uninterruptible power supply for medium to long durations through the use of external batteries (accumulators). It ensures the state of charge, checks the available capacity, calculates the backup time, and automatically and seamlessly switches over in the event of a primary power failure. A display allows for easy adjustment and provides information on various statuses. Control inputs and signaling outputs facilitate ideal interaction with a control system. The output current is limited to 40 A.
