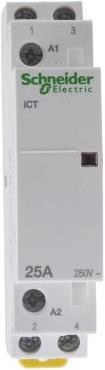

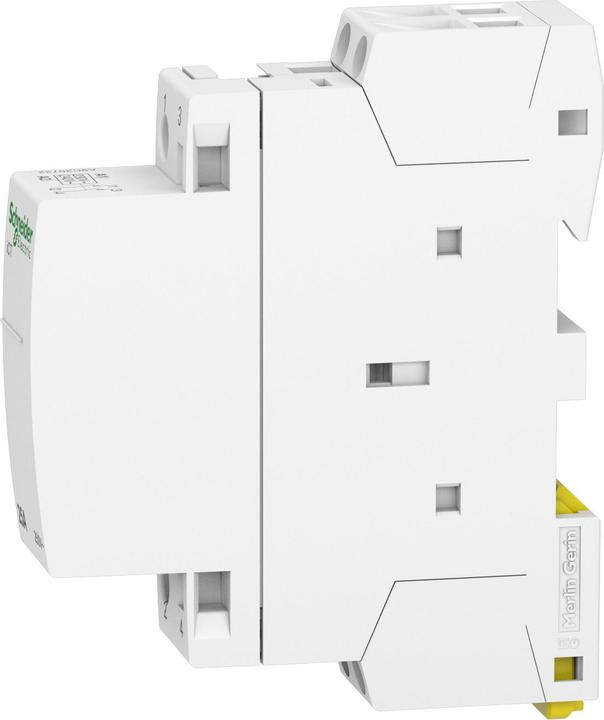

Schneider Electric Acti9 iCT Contactor 25A 2NO 230/240Vac
Free shipping starting at 50.–
Area: Acti 9
Series: iCT
Coil Voltage: 230 to 240 V AC
Contact Rated Current: 25 A
Contact Rated Voltage: 250 V AC
Number and Position of Contacts: 2-pole
Contact Configuration: 2 Normally Open
Power: 1.2 W
Connection Type: Screw Terminal
Width: 81 mm
Maximum Operating Temperature: +60 °C
Acti 9 iCT contactors from Schneider Electric enable power switching in single-phase 3-phase loads. The TeSys GC series contactors are safe, easy to use, and simple to install. These devices, with their compact dimensions, are suitable for a wide range of applications.
Features and Benefits:
What is the difference between AC-7a and AC-7b when selecting an iCT contactor? These utilization categories determine which loads the contactors can switch:
Do spacers need to be installed between the iCT series contactors? When multiple contactors are mounted on a DIN rail, spacers should be used after every second contactor. The reason for this is that when multiple contactors are placed side by side, there can be a significant heat buildup, causing the devices to exceed their operating temperature. The coils themselves are designed to be on 100% of the time, so heat must be dissipated, hence a spacer is required.
Automation functions | Switch function |
Circuit functions | Acoustic signal |
Item number | 9734480 |
Manufacturer | Schneider Electric |
Category | Home automation |
Manufacturer no. | A9C20732 |
Release date | 24.9.2018 |
Sales rank in Category Home automation | 10 of 8108 |
Automation type | Industrial automation |
Automation functions | Switch function |
Application range | Indoor |
Manufacturer Type | A9c20732 |
mounting style | Screws |
Maximum power consumption of the circuit | 2850 W |
Circuit functions | Acoustic signal |
Electric current output | 25 A |
Power supply | Electrical connection |
Smart Home | Not compatible |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 |
Length | 100 mm |
Width | 91 mm |
Height | 24 mm |
Length | 12.60 cm |
Width | 10.90 cm |
Height | 3.40 cm |
Weight | 120 g |
