Schmersal Safety switch

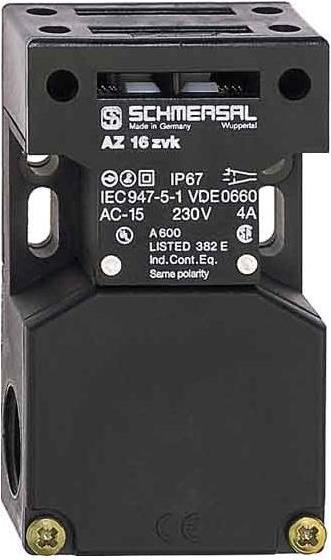

Schmersal Safety Switch AZ 16-12ZVRK-M16

Manufacturer: Schmersal
Designation: Safety switch with separate actuation mechanism
Type: AZ 16-12ZVRK-M16
With status indicator: no
Suitable for safety functions: yes
Width of the sensor: 52 mm
Height of the sensor: 90 mm
Length of the sensor: 30 mm
Forced opening: yes
Number of contacts as normally open: 2
Number of contacts as normally closed: 1
Design of the switching element: Slow action
Rated operational current Ie at AC-15, 230 V: 4 A
Rated operational current Ie at DC-13, 24 V: 4 A
Housing design: Rectangular
Material of the housing: Plastic
Coating of the housing: Uncoated
Design of the interface: None
Design of the interface for safety-related communication: None
Design of the electrical connection: Cable entry (metric)
Explosion protection category for gas: None
Explosion protection category for dust: None
Ambient temperature during operation: -30 to 80 °C
Protection class (IP): IP67.
