Schabus Cable exhaust control KGS 116

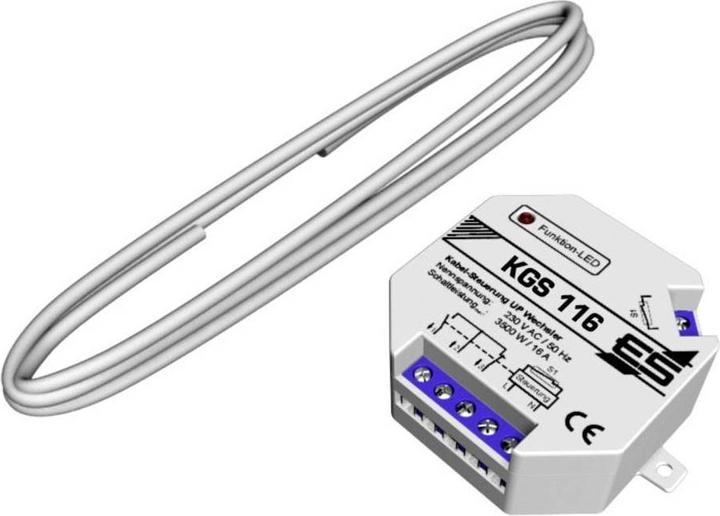

Schabus Cable Exhaust Control KGS 116

Manufacturer: Schabus
Designation: Cable Exhaust Control
Type: KGS 116

The Schabus Cable Exhaust Control KGS 116 is an essential accessory for exhaust systems, such as bathroom fans, which create a negative pressure in the room when insufficient air can flow in. If there is a room air-dependent combustion appliance, such as a gas boiler, there is a risk that dangerous exhaust gases may enter the room.

With the Cable Exhaust Control KGS 116, the exhaust system can only operate when the room air-dependent combustion system is turned off. The control unit is connected via a cable to the potential-free contact (normally closed) of the gas boiler. As soon as combustion starts and the contact closes, the exhaust system (e.g., bathroom fan) is deactivated.

Technical Data:

• Operating Voltage: 230 V, 50 Hz
• Power Consumption: approx. 2 W
• Relay Switching Power, resistive load: 3500 W / 16 A
• Relay Switching Power, inductive load: 2000 VA / 8 A
• Control Voltage: 18 V
• Control Line, extendable: 4 m long, diameter 3.2 mm
• Operating Range: -15 °C to +40 °C
• Protection Class: IP 20
• Control Unit (HxWxD): 51 x 51 x 26 mm
• EAN: 4044764001114.
