Name: UR18650NSX battery (positive terminal slightly protruding)
Brand: Sanyo
SKU: 13101484
Price: 29.4 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Sanyo

The Sanyo UR18650NSX model is a power tool cell from Sanyo/Panasonic, featuring exceptionally high current output. The Sanyo cell was designed for use in industries, e-mobility, power tools, model building, and all other areas where high-performance batteries are required.

Sanyo/Panasonic UR18650NSX supports a constant discharge current of up to 20A. Note: The UR18650NSX comes in two versions: the green version (Panasonic) is manufactured in China, while the red version (Sanyo) is made in Japan.

Cell Type: UR18650NSX Li-Ion
Capacity: 2600mAh
Minimum Capacity: 2500mAh
Nominal Voltage: 3.6V - 3.7V
Charge Termination Voltage: 4.2V
Discharge Current (constant): 8C 20A
Charge Current: up to 0.7C 1700mA
Discharge Termination Voltage: 2.50V
Protection Circuit PCB: not present

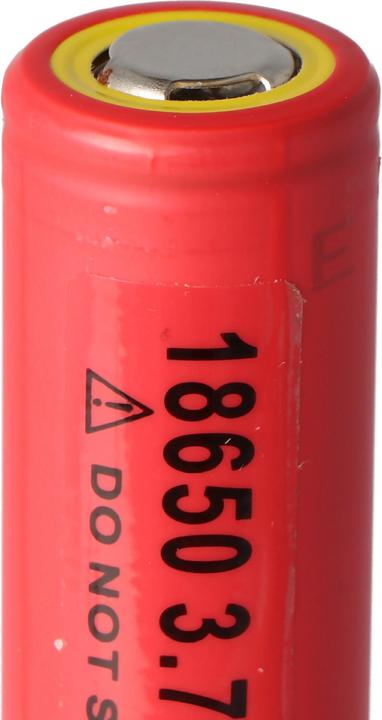

Positive Terminal: slightly raised (Flat Top)
Chemistry: Trimax
Diameter: 18.50 mm - 0.5 mm
Height: 65.30 mm - 0.4 mm
Weight: 45.8 g ± 1 g
Charging Method: CC-CV
Comparison Test (Forum): Mountainprophet

Safety Notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density.

Technical Data for "Sanyo/Panasonic UR18650NSX 3.6V - 3.7V 2600mAh (Positive Terminal Slightly Raised)":
Charge Current and Charging Time (slow): 0.1A - 1A/3.5h - 7h
Max. Charge Current and Charging Time (fast): 1.7A/3 h
Recommended Charge Current: 0.5C 1.25A/3.5h
Operating Temperature for Charging: 0 °C - 50 °C
Operating Temperature for Discharging: -20 °C - 75 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage).

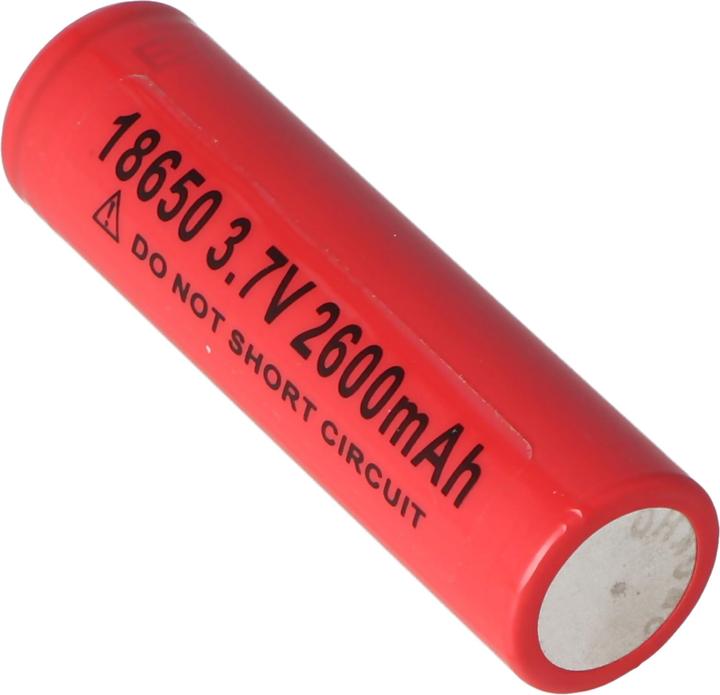

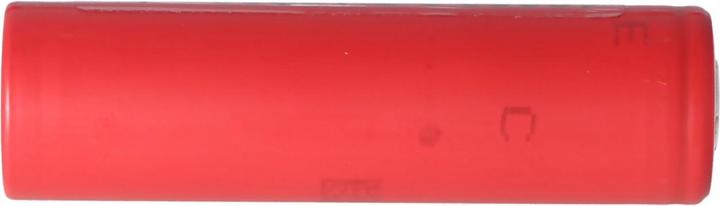

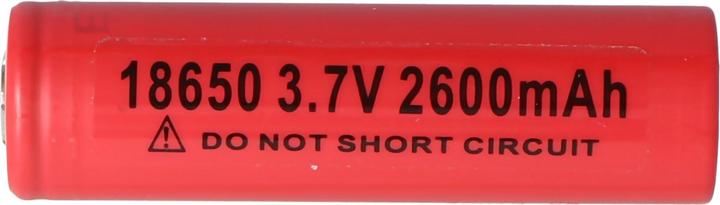

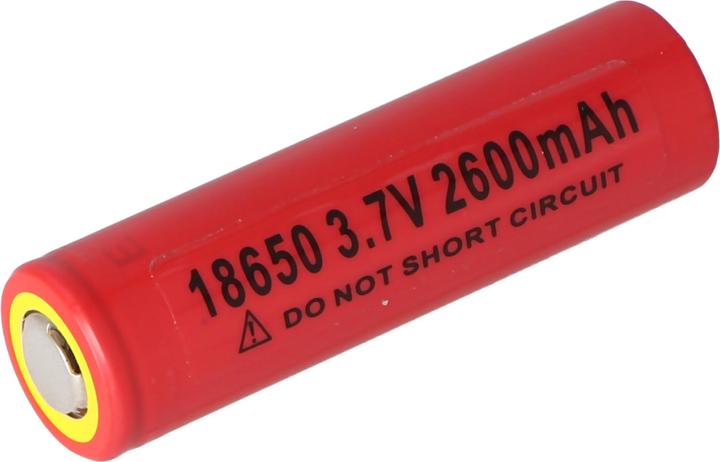

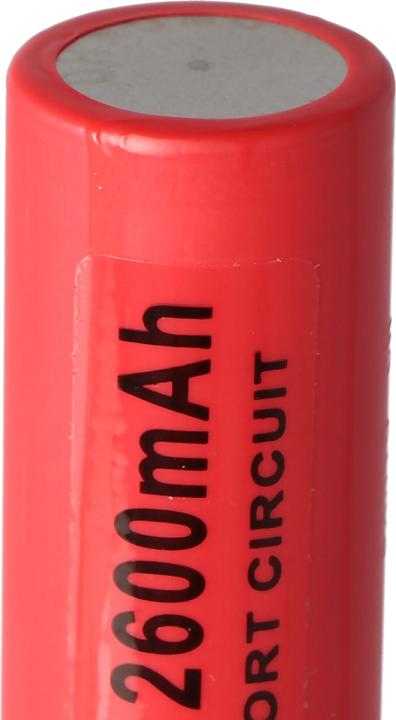

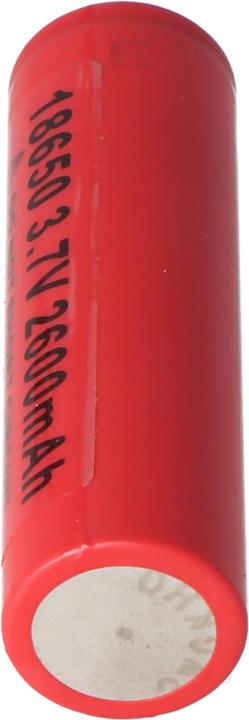

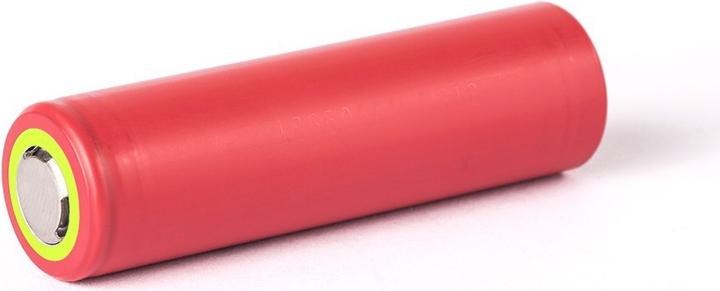

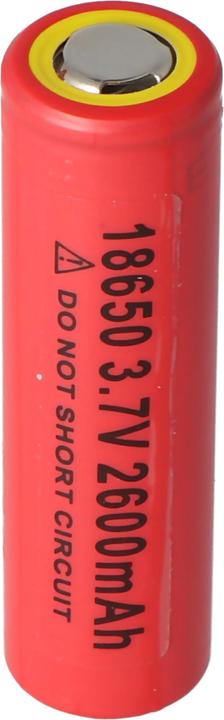

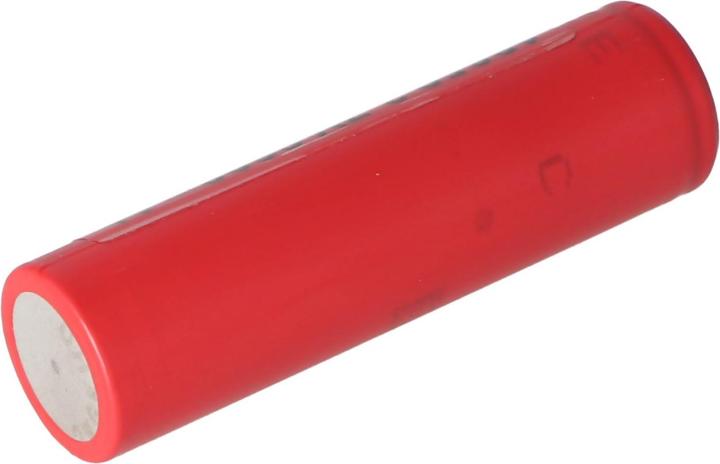

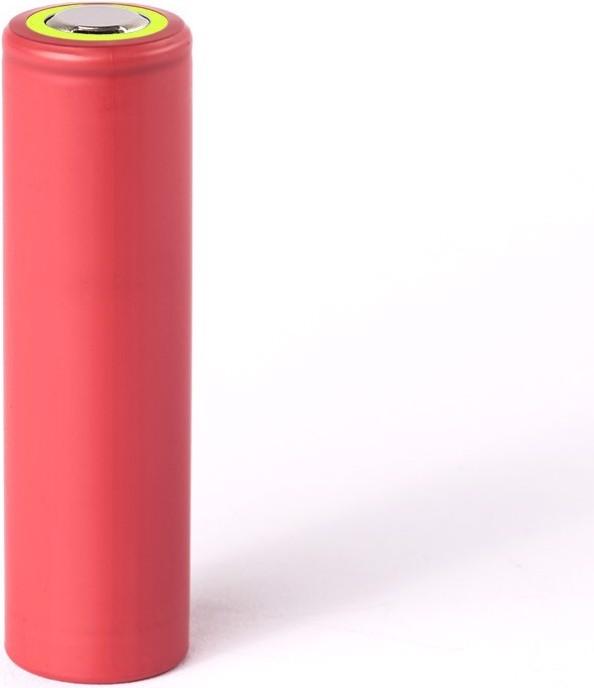

Actual product image Sanyo UR18650NSX battery (positive terminal slightly protruding) (1 pcs., 18650, 2600 mAh)
