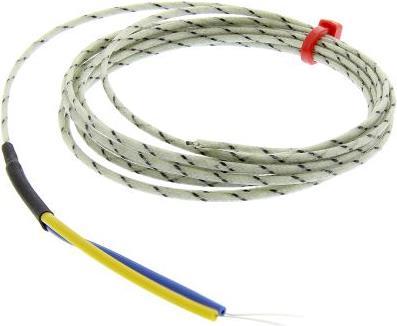

Rs Pro Thermocouple type J

Thermocouple type: J
Probe diameter: 1/0.3 mm
Maximum temperature detected: +400°C
Connection type: Cable
Cable length: 2 m
Standards met: BS

Tolerance complies with IEC 584 class and is color coded to the former British Standards BS1843-1952. Thermocouples, bayonet adapters, compensation and extension cables, besides connectors, are discontinued as they are replaced by the new color code standard - BS4937 Part 30 1993 (IEC 584-3 1989 modified for international use). System calibration is available on selected probes and includes full charge status of the tool and probe. Type J thermocouple with a welded tip. Our Type J fine wire thermocouples from RS Pro are devices for measuring temperature, consisting of two wires made of different materials. When these two wires are connected together, they form an electrical connection. As soon as the temperature at this connection changes, a voltage is generated which can be used to read the temperature. This is also commonly referred to as the Seebeck effect.

Features and benefits:
Thermocouples are the perfect solution and the ideal tool for temperature measurement; they are robust, inexpensive, and reliable. They provide a very fast response due to the welded exposed connection. Made from a 2 meter fiberglass insulated ribbon cable with useful color-coded end wires. They have good temperature resistance but are not suitable for liquids. A three-year warranty is included. Features a non-oxidizing hot connection tip with a temperature range of -50 to +400°C.

Typical applications:
Thermocouples are used in many industrial, scientific, and OEM applications. They are ideal for testing and development and are used in almost all industrial applications such as power generation (boiler/heating sensors), oil and gas (furnace safety), pharmaceuticals (hospital thermostats), and many others. They can be found in most everyday appliances such as ovens, toasters, and melting furnaces.
