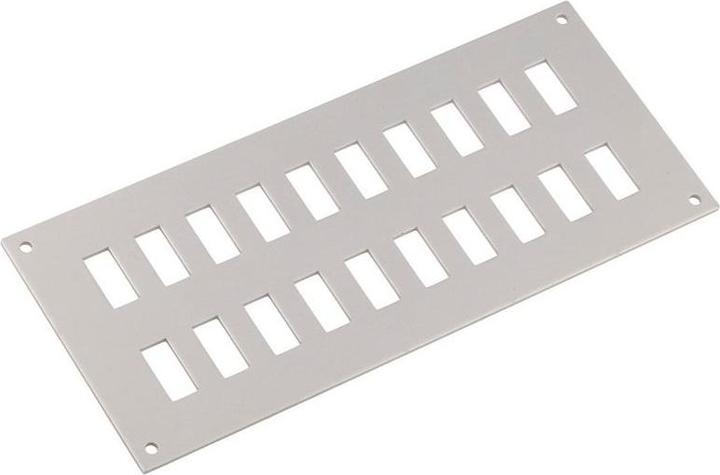

RS PRO Thermocouple mini patch panel 20-fold

Accessory variant: 20-pin thermocouple orifice plate
For use with: Miniature socket
Standards met: RoHS compliant
Connector size: Miniature
Mounting type: Flange mount

Orifice plates are made of anodized aluminum and are suitable for mounting thermocouple insertion sockets. Height: standard 66 mm, miniature 45 mm. Formula for length: Standard (19 x n) + 31 mm, miniature (15 x n) + 25 mm, where n = number of poles. Mounting holes are 4 x 3.25 mm Ø, with a 5 mm distance from the edge. Anodized aluminum bezels are suitable for miniature and standard thermocouple sockets for front panel mounting. Available finishes include etch, matte, and silver anodized.

Miniature size panels are available in 2-, 4-, 6-, 12-, 16-, 20-, and 24-pin sizes. Standard size panels are available in 1-, 2-, 3-, 4-, and 6-pin sizes. 1- to 12-pin panels are in one row, while 16-, 20-, and 24-pin panels are double row (e.g., 16-pole = 2 rows of eight, 20-pole = 2 rows of 10, 24-pole = 2 rows of 12). The miniature and standard boards have 4 x 3.2 mm mounting holes with 5 mm center-to-center spacing from corner edges.
