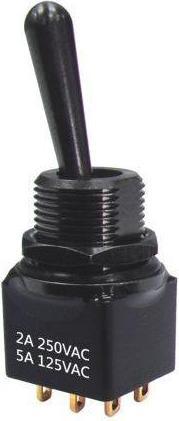

RS PRO Switch Toggle 12mm on-on-on IP67

Contact arrangement: Double-pole toggle switch (DPDT)
Switching sequence: On-On-On
Contact rated current: 5 A @ 250 V ac
Mounting type: PCB
Connection type: Solder Lug
IP protection class: IP 67
Actuator length: 18 mm
Actuator material: Brass
Contact resistance: 10 mΩ
Operating temperature range: -30 → +85 °C

Sealed miniature toggle switches according to IP67 – RS series. These encapsulated switches feature a double housing for additional mechanical strength and strong electrical insulation. The switches have two front O-ring seals that ensure sealing during operation. The back of the switches is also fully sealed, providing complete protection against flowing water. The contacts are suitable for applications with low (10 mA, 50 mV – minimum 10 μA, 5 V dc) to high power (3 A @ 250 V ac).
