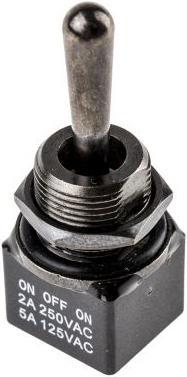

Rs Pro Switch Toggle 12mm on-off-on IP67

Contact arrangement: Double pole double throw switch (DPDT)
Switching sequence: On-Off-On
Rated contact current: 5 A @ 250 V ac
Mounting type: Printed circuit board
Connection type: Solder lug
IP protection class: IP 67
Actuator length: 18 mm
Actuator material: Brass
Contact resistance: 10 mΩ
Standards met: MIL-STD-202F

IP67 sealed miniature toggle switches - RS series. These enclosed switches feature a double enclosure for added mechanical strength and strong electrical insulation. The switches have two front O-ring seals to provide sealing during operation. The rear of the switches is also fully sealed and provides complete protection from flowing water. The contacts are suitable for low (10 mA, 50 mV - minimum 10 μA, 5 V dc) to high power (3 A @ 250 V ac) applications.
