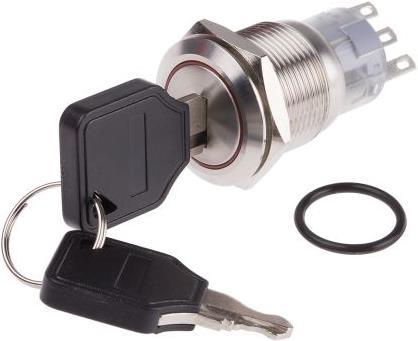

Rs Pro Switch Key Lock 3 position maintain 19mm

Number of positions: 3
Switching sequence: Latching
Contact arrangement: Single pole double throw switch (SPDT)
Rated contact current: 5 A
IP protection class: IP 40
Connection type: Soldering
Housing material: Stainless steel
Panel shape: Round
Mounting depth: 36.5 mm
Switching angle: 45°
Contact material: Silver
Minimum operating temperature: -20°C

Vandal-resistant key switches, 19 mm. Vandalism-resistant key switches with ring or voltage display, available in various colors. The switches have an impact resistance of IK03 and feature a front panel with an IP40 protection class. They are equipped with an LED resistor to protect against voltage fluctuations. The switch housing and button are made of painted stainless steel. Electrical lifespan: 50,000 switching cycles at full load. Diameter of panel cutout: 19.2 mm. Buttons in all positions can be removed.
