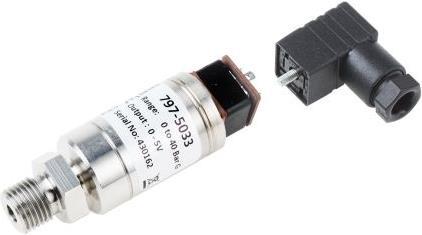

RS PRO Pressure Transducer

Pressure display type: Pressure gauge
Minimum pressure display: 0 bar
Maximum pressure display: 40 bar
Accuracy: ±0.25%
Output type: Voltage
Medium: Various media
Process connection: BSP 1/4
Analog output: 0 → 5 V
Supply voltage: 9 → 32 V dc
Housing material: Stainless steel
Mounting type: With thread

RS pressure transducer – Series IND. The IND series is suitable for a wide range of industrial applications. It features a probe with a piezoresistive ceramic sensor for excellent media compatibility in a stainless steel housing. Piezoresistive thick-film ceramic sensor, stainless steel housing, ±0.25% accuracy, various outputs including mV, Volt, and mA, microprocessor-based amplifier, operating temperature range: -20 °C to +135 °C, temperature compensated, calibrated, and provided with a traceable serial number as well as a calibration certificate.
