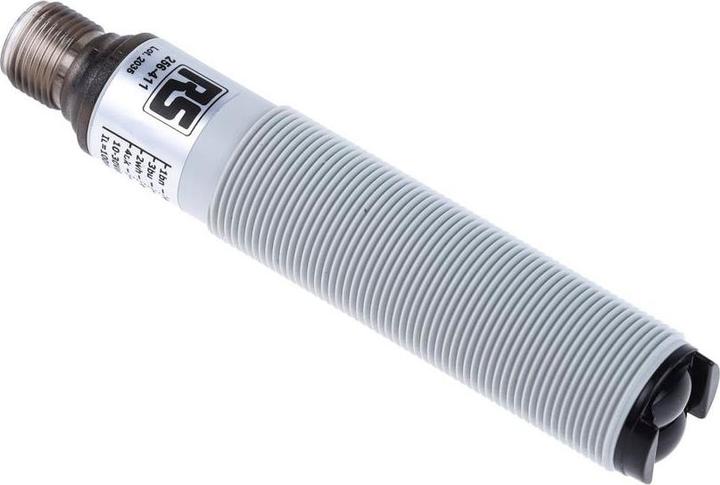

Rs Pro Optical proximity switch reflection

Sensor Type = Cylindrical
Operating mode = Retroreflective
Detection range = 4 m
Output type = PNP
Connection = M12 connector
DC voltage max = 30V
Optical technology = Phototransistor
Light source = Infrared
Protection class = IP67
Current max. = 100 mA
Response time = 6 ms
Housing material = polyamide
Standards met = CE, cUL, UL

Diffuse and reflective sensing, M18. Compact optical proximity switch Yellow polyamide housing Protection class IP67 Pluggable units with diffuse sensing and with reflection sensing Detection range of 200 mm resp. 4000 mm available Four switching options (PNP open, PNP closed, NPN open, NPN closed) make it particularly versatile and suitable for many applications LED in housing indicates switching status Fully decoupled output (optically isolated) Uses modulated IR light Short-circuit proof output PNP or NPN, opening or closing collector output Low power consumption See proximity switch accessories in this section for suitable plug-in cables.
