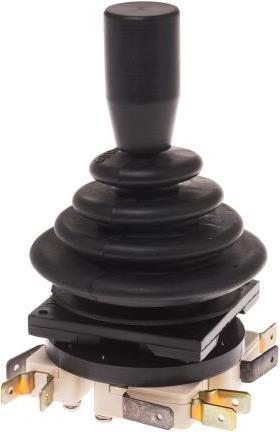

Rs Pro Joystick 2 axis spring return 6cm base

Number of axes: 2
Switching technology: Spring return
IP protection class: IP 65
Handle type: Knob
Nominal contact voltage: 250V AC
Nominal contact current: 5 A @ 250 V AC
Joystick actuation travel: ±12 °
Connection type: Quick connect
Mechanical life: 200,000 operations
Mounting depth: 21.5 mm
Operating temperature min: -20°C
Operating temperature max: +65°C
Handle height: 37 mm

RS joystick, front panel mount. Front panel mount joysticks are ideal in areas where contamination from dirt and water is possible. The joysticks have IP65 protection (above panel) with a lifetime of up to 200,000 operations. The microswitches are rated at 5 A at 250 V AC and the pressure switch, if present, is rated at 0.1 A at 50 V DC. 2 axes with spring return and open square gate X and Y control range: approximately 20°.
