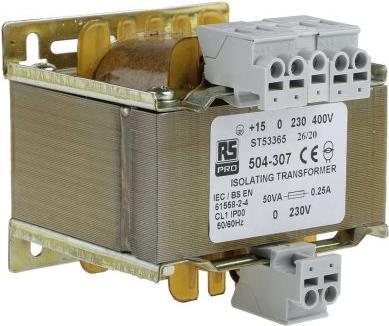

Rs Pro Isolation transformer,50VA 0-230V o/p

Primary nominal voltage: 230 V AC, 245 V AC, 400 V AC, 415 V AC
Secondary rated voltage: 230 V AC
Rated power: 50 VA
Mounting type: DIN rail
Number of outputs: 1
Length: 84 mm
Width: 84 mm
Depth: 91 mm
Dimensions: 84 x 84 x 91 mm
Operating frequency min.: 50 Hz
Operating frequency max.: 60 Hz
Maximum temperature: +35 °C
Weight: 1.9 kg

Switchboard primary 230/400 Vac with +15 Vac tap. High quality safety and control isolation transformers for use in control circuits and general applications. Low loss noise lamination. Double standard primary winding 230 / 400 Vac with +15 V tap for input flexibility. Double secondary windings have center tap. Ground terminal included. Fully paint-impregnated for protection against moisture and rusting. Fully sheathed cage terminal with voltage markings. Detailed product data on permanent label. High efficiency, low regulation.
