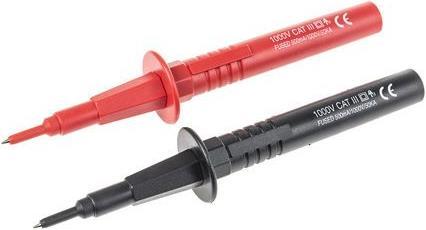

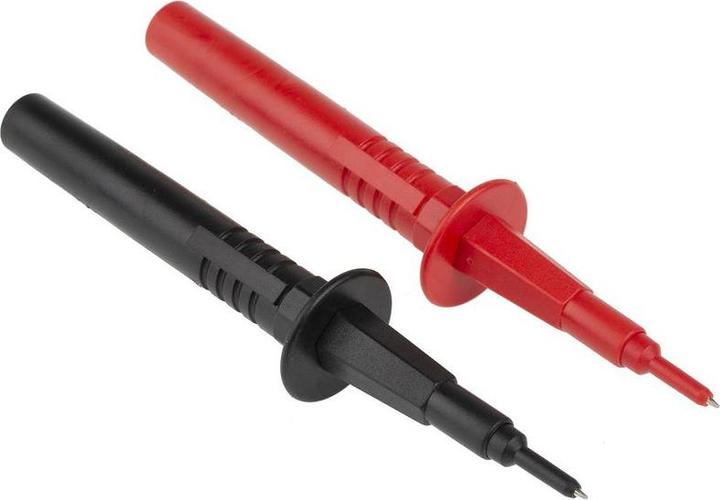

RS PRO Fused Test Probes, 1000 V, GS38

Lead type: Test probes with protection
Connector type: Banana plug
Protected: Yes
Safety voltage: 1000 V
Safety category: CAT III 1000 V
Safety level: Cat. III

The protective features and safety ratings of the testing device must be considered when combined with high-performance measuring leads. Test probes with protection, 1000 V, GS38. For use with the multimeter lead set, the protected test probes must provide a safe method for voltage measurement in high-voltage circuits. They meet the requirements of the GS38 safety directive and the IEC 1010 safety standard, CAT III, 1000 V. Each test probe is equipped with an HRC fuse (500 mA, 1000 V). Replacement fuses are available. The protected test probes can also be combined with additional test clips in the multimeter lead set. The protected test clip configuration must comply with the requirements of GS38 and IEC 1010, CAT III, 1000 V.

Features and benefits:
Rated value according to IEC 1010: 1000 V, CAT III/IV
Double/reinforced
Meets GS38
1.2 m double-insulated silicone cable
Two-color insulation layers
1.0 mm² CSA
3.6 mm nominal diameter, multi-stranded flexible copper core
Temperature range: –10 °C to +150 °C
Fuse: 500 mA / 1000 V / 50 kA.
Set of thin fine insulated probes for use with protected test probes and multimeter lead sets is also available. Illuminated probe set with aperture for use with protected test probes and multimeter lead sets. For use with the lead set.
