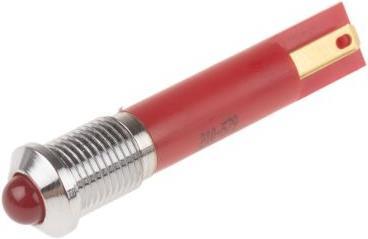

Rs Pro 8mm HE red LED satin chr prominent,24Vac

Rated voltage: 24 Vac
Signal color: Red
Mounting hole diameter: 8 mm
Lamp type: LED
Lamp size: 5 mm
Connection type: Solder tag
Aperture shape: Protruding
Aperture color: Chrome
Current: 20 mA
Intensity: 10,000 mcd
Length: 40 mm

8 mm LED displays from RS Pro. This series of high-quality indicators provides an excellent solution for applications requiring a signal or warning light. The quality and reliability of each indicator and LED ensure high brightness and long life with low power consumption. The housing of these indicators includes a convenient solder lug for quick and easy connections.

Features and benefits:

• 5 mm epoxy diffusing lens, colored, for diffused light
• Available LED colors: red, green, and yellow
• Solder lug terminals for quick installation
• Matte black and black chrome-plated brass bezels available
• Terminals: 2.8 mm x 0.8 mm
• Various voltage ratings

Indicators can be installed on printed circuit boards or mounted on pushbuttons and switches. They are primarily used for printed circuit boards and electronic designs due to their relatively small size compared to other types of indicators, such as automotive indicators. The LEDs are reliable and of excellent quality.

Advantages of LEDs include longevity and low power consumption. Additional benefits are:

• Temperature: LEDs emit a much lower temperature compared to incandescent or neon lamps.
• Direction: LEDs emit light in only one direction, eliminating the need for additional components like reflectors. However, this does not apply when the LED display is used as a PCB signal.
