Product details

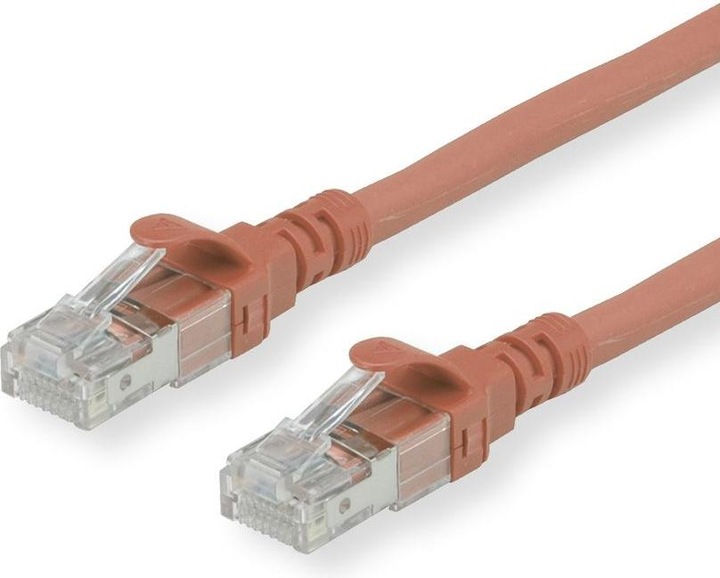

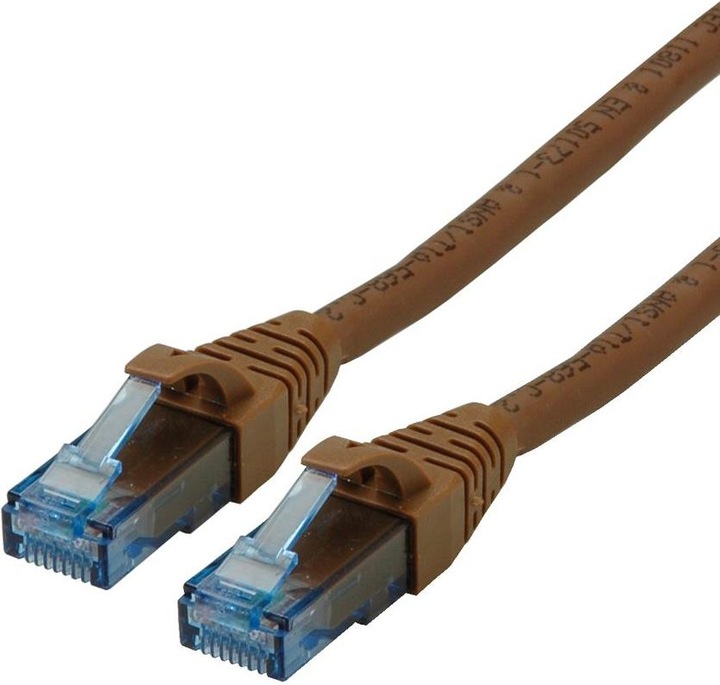

Assembled Category 6A unshielded twisted pair patch cable with RJ-45 connectors on both ends. 100% Component Level Tested.
Durable thanks to molded bend protection. Suitable as patch cord in patch panels or as device connection cable and intended for LAN applications. Contact assignment: 1:1 according to EIA/TIA568, 8 cores. Construction: 8 cores stranded. High quality gold plated contacts. Halogen free, flame retardant, low smoke.
Patch cable type | Copper cable |
Contact assignment | straight |
Documents | |
Item number | 7677428 |
Manufacturer | Roline |
Category | Network cables |
Manufacturer no. | 21.15.2782 |
Release date | 8.2.2018 |
Cable colour | Brown |
Material | Thermoplastic resin, Thermoset |
Material of the isolation | LSZH |
Connection A | RJ45 |
Connection B | RJ45 |
Cable design | LSOH outer jacket |
Plug type | Gold-plated contacts |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 26 |
Frequency | 500 MHz |
Patch cable type | Copper cable |
Patch cable Features | Halogen-free, Handle protection |
Max. data transfer rate | 1.25 GB/s |
Cable category | CAT6a |
Contact assignment | straight |
Shield | UTP |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 |
Diameter | 6.20 mm |
Length | 2 m |
Width | 2000 mm |
Depth | 2000 mm |
Weight | 79.90 g |
Specifications may include unverified machine translations.
