Roline 19-inch wall-mounted housing Pro 7 U
7 RU, 19 inch rackMore than 10 pieces in stock at supplier
Product details

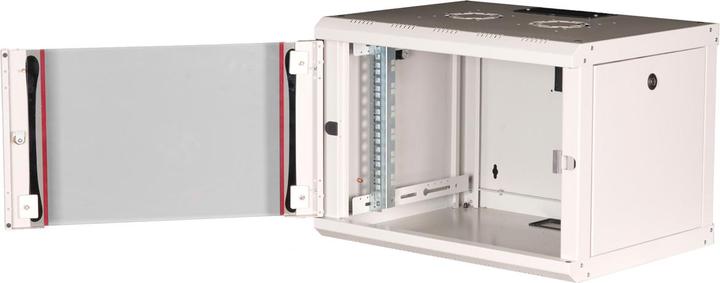

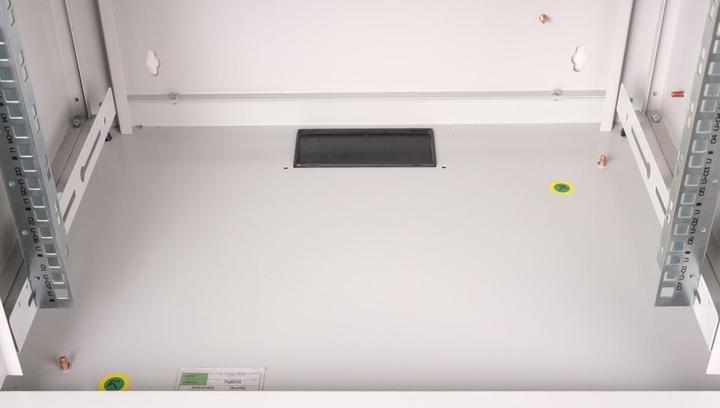

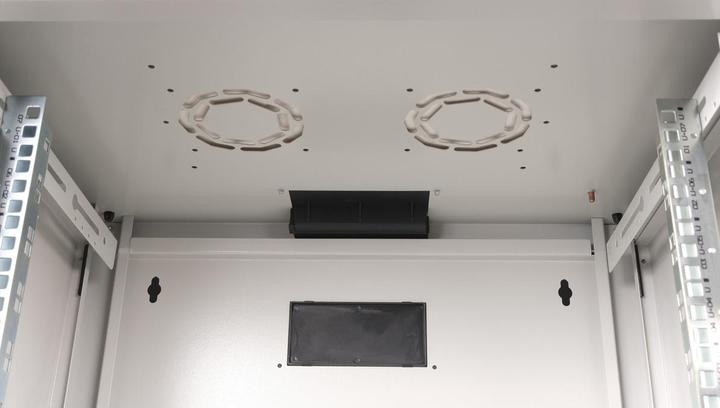

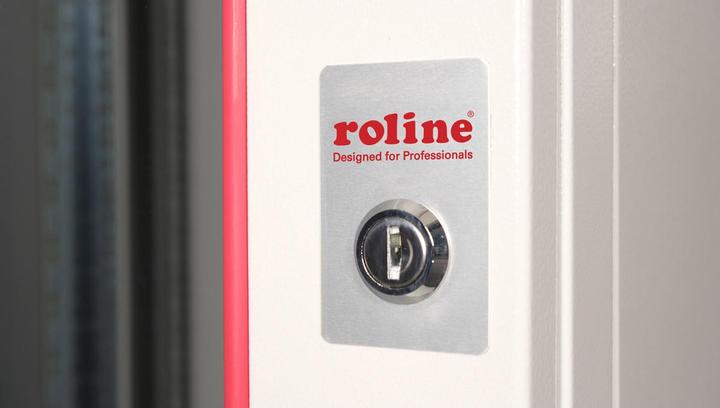

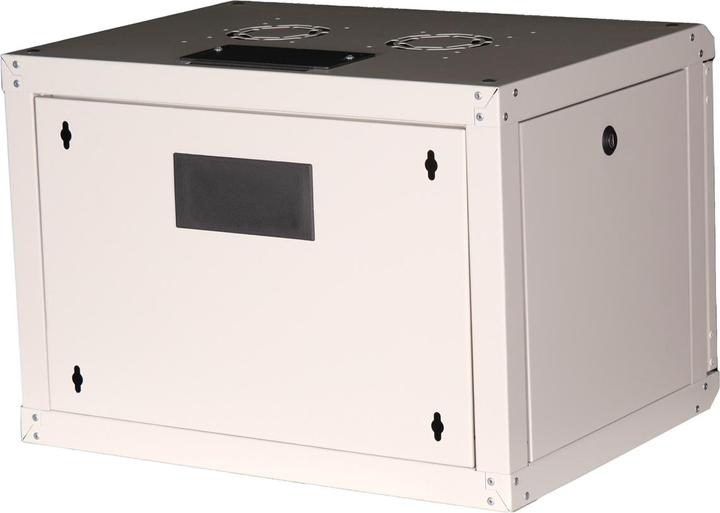

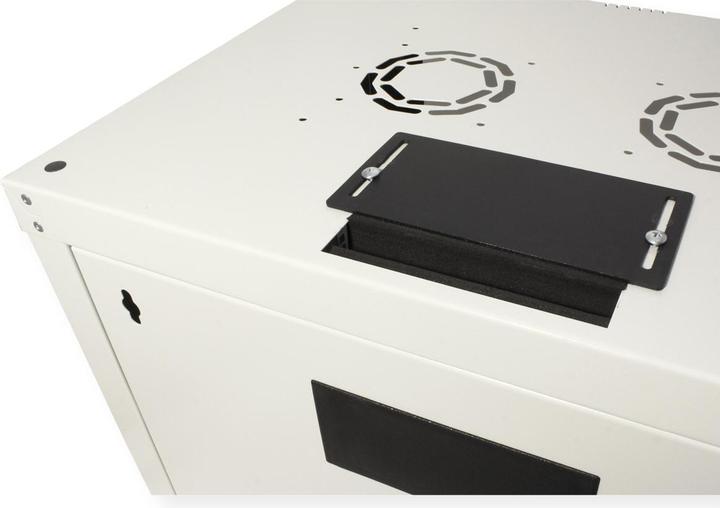

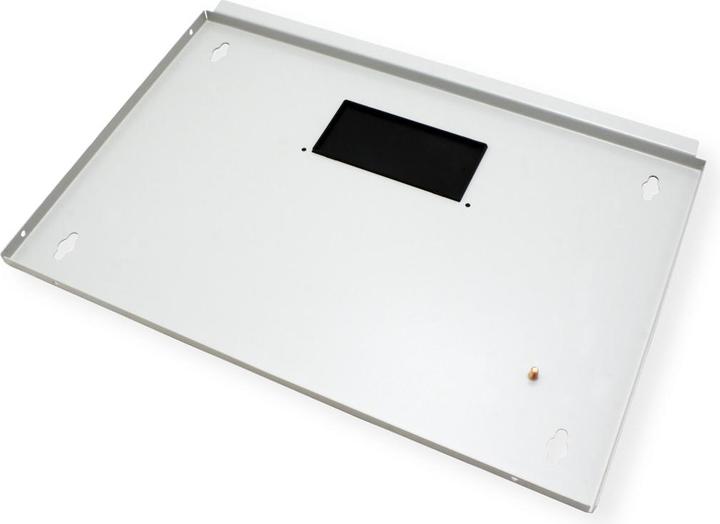

Roline 19-inch Wall Cabinet Pro 7 HE 600x450 D x W gray. The wall cabinets of the Roline Pro Series are specifically designed for flexible network cabling. Each cabinet features a sliding cable entry on the roof with a rubber seal. The back panel and the base plate are equipped with punched cable entries and plastic covers. The roof chassis offers a punched area for the installation of a fan module. Inside, there are a pair of galvanized profile rails with a height of 483 mm (19"), which are also adjustable in depth. The robust steel constructions of the cabinets are made from up to 1.5 mm thick steel sheet and are available in gray (RAL 7035) or black (RAL 9005) powder-coated finishes. The side panels and the front door are modular, lockable, and removable, improving accessibility. Wall mounting is done in two simple steps: first, the back panel is screwed to the wall, and then it is connected to the cabinet. Optionally, leveling feet or wheels can be used to utilize the cabinets as free-standing units.
Protection type (IP code) | IP20 |
Type | Cabinet |
Ventilation | Passive |
Server cabinet features | Door, Lockable, Removable side panels |
Usable installation depth | 370 mm |
Item number | 47381335 |
Manufacturer | Roline |
Category | Server cabinets |
Manufacturer no. | 26.21.0000 |
Release date | 24.7.2024 |
External links |
Colour | Grey |
Exact colour description | RAL 7035 Light grey |
Material group | Glass, Metal |
Material | Glass, Sheet steel |
Type | Cabinet |
Rack size | 19 inch rack |
Form factor size | 7 RU |
Usable installation depth | 370 mm |
Max. weight | 100 kg |
Protection type (IP code) | IP20 |
Ventilation | Passive |
Server cabinet features | Door, Lockable, Removable side panels |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece, 2x keys, Assembly instructions, Earthing cable set, Installation set (screws, cage nuts, washers) |
Height | 418 mm |
Width | 600 mm |
Length | 450 mm |
Weight | 14.50 kg |
