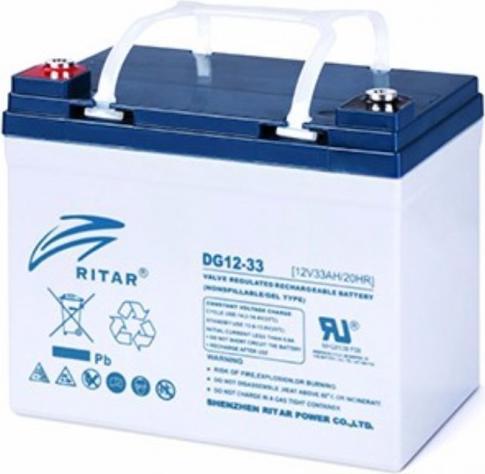

Ritar Gel Battery DG12-33

33000 mAh
1Ratings
Delivered between Thu, 19.6. and Fri, 27.6.
Supplied by

Product details

Ideal for standby applications such as UPS systems or frequent, cyclic discharging in extreme environments. Thanks to the use of reinforced grid plates, high-purity lead, and the patented GEL as an electrolyte, the DG batteries offer excellent recovery after deep discharge. The battery is suitable for small solar off-grid systems and UPS systems.

Technical specifications:

  • Manufacturer designation: DG12-33
  • Technology: GEL
  • Nominal voltage: 12V
  • Capacity: C3 22.5Ah, C5 25.4Ah, C10 29.0Ah, C20 33.0Ah
  • Weight: 9.8 kg
  • Internal resistance: Approx. 13.0 mΩ

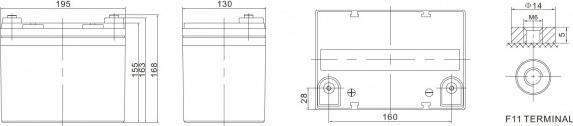

  • Connection: F11 threaded hole M6
  • Max. discharge current: 330A (5 sec)
  • Lifespan on maintenance charge: 15 years
  • Max. charge current: 6.6A
  • Charge voltage for maintenance charging: 13.6 V~13.8 V at 25°C, temperature compensation -3mV/°C/Cell
  • Charge voltage for cyclic operation: 14.2 V~14.4 V at 25°C, temperature compensation -4mV/°C/Cell
  • Temperature range: Discharge: -40°C ~ 60°C, Charge: -20°C ~ 50°C, Storage: -40°C ~ 60°C
  • Nominal temperature: 25°C ±5°C
  • Self-discharge: The battery can be stored for 6 months without recharging at a maximum temperature of 25°C. Self-discharge < 2% per month at max. 20°C
  • Case material: A.B.S. UL94-HB

Compatible with batteries: ALMAT AM 12-33.

Key specifications

Voltage
12 V
Item number
36833023

General information

Manufacturer
Ritar
Category
Batteries
Release date
28.6.2023
Sales rank in Category Batteries
1472 of 6330

Battery properties

Voltage
12 V
Battery capacity
33000 mAh
Rechargeable
Rechargeable
Durability
15 years

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
155 mm
Diameter
130 mm
Weight
9800 g
