Product details

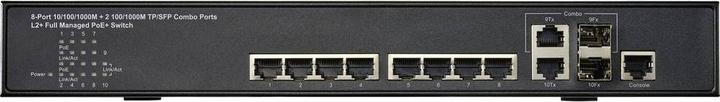

The Renkforce RF-MSW-600 is a fully managed switch with 8 PoE-capable ports (10/100/1000 MBit/s) and 2 Gigabit SFP/RJ45 combo ports with copper connections. It is designed for small to medium network environments to enhance network connectivity. The 8 PoE ports support PoE technology IEEE 802.3at/af with up to 30 W per port and a maximum transmission distance of 100 m. The switch is equipped with an AC-DC power module and can provide 120 W of power for PoE. The additional 2 SFP/RJ45 combo ports support both 100 MBit and Gigabit fiber transceivers for long-distance transmission. The switch also supports full Layer 2+ management software features. These powerful functions enable PoE control, network monitoring and management, as well as security features. An excellent choice to enhance your network with better performance, efficiency, and high PoE power consumption.
IEEE 802.3at/af Power over Ethernet (PoE) ports: This product can convert standard power from 100–240 V AC to low-voltage DC that runs over an existing LAN cable to power IEEE 802.3at/af compatible network devices. It also features PoE detection to check whether the network device is 802.3at/af compatible and receives power, or if only data is being transmitted over the LAN cable. By adding the switch to the existing network, network products such as access points and IP cameras can be easily managed and set up.
Two Gigabit RJ45 copper/SFP combo ports enable uplinks to servers, storage, or other devices for extended range. The switch includes complete Layer 2+ management functions. The software set supports up to 4K 802.
Max. port speed | 1000 Mbit/s |
Network connections | RJ45 (8x), SFP (2x) |
Switchtype | PoE Switch |
Number of PoE ports | 8 Ports |
Management | Fully managed |
Switch functions | PoE |
Item number | 18884049 |
Manufacturer | Renkforce |
Category | Network switches |
Manufacturer no. | RF-4676510 |
Release date | 10.2.2022 |
Colour | Black |
Exact colour description | Black |
Switchtype | PoE Switch |
Number of ports | 8 Ports |
Number of PoE ports | 8 Ports |
PoE Standard | 802.3af (PoE), 802.3at (PoE+) |
PoE budget | 120 W |
Management | Fully managed |
Switch functions | PoE |
switching layer | Layer 2 |
Switching capacity | 1 Gbit/s |
Max. Number of VLANs | 4000 x |
Manufacturer Type | RF-MSW-600 |
Network connections | RJ45 (8x), SFP (2x) |
Max. port speed | 1000 Mbit/s |
Max. port speed RJ45 | 1000 Mbit/s |
Max. Port Speed Fiber | 1 Gbit/s |
Max. Port speed | 1000 Mbps / 1 Gbps |
Application range | Professional use |
Network operation | Powered device |
Power consumption | 120 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2x device holder, 8x screws, Managed switch with 8 connections, Power cord |
Length | 21 cm |
Width | 33 cm |
Height | 4.40 cm |
Weight | 2200 g |
