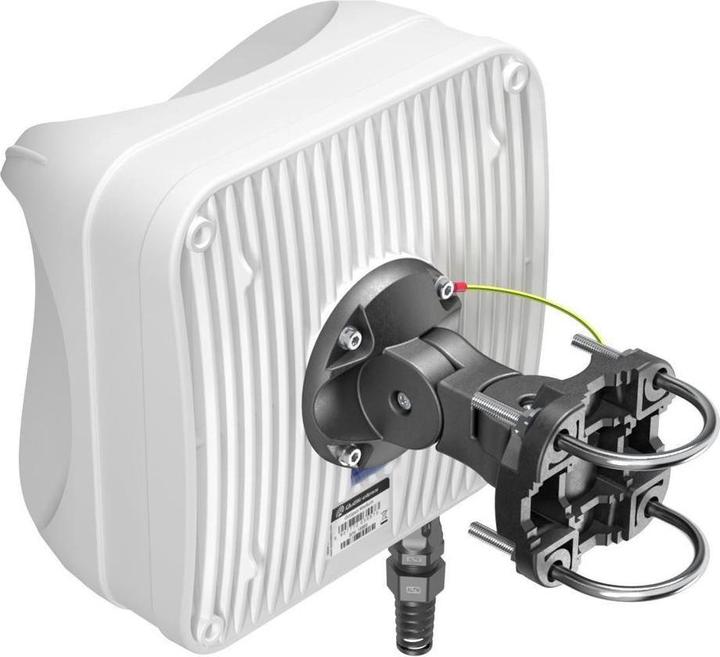

Quwireless AR1511MP - QuMax with PoE Splitter for Robustel R1511P

Integrated Multi-Band 5G Directional Antenna + Wi-Fi 6E Omni Antenna + PoE Splitter + Installation Space for Robustel R1511P (All-in-One)

The QuMax antenna for the Robustel R1511P router is a perfect outdoor device for enhancing signal strength in rural and suburban areas, as well as in locations where mobile signals are weak. It features an embedded 5G directional antenna and an Omni Wi-Fi antenna. When using the R1511P with the QuMax antenna, you receive an integrated complete solution with a built-in router and multi-band antennas in a single enclosure.

Wi-Fi 6E support!

The set includes a PoE splitter, allowing you to split data and power from a single Ethernet cable while maintaining gigabit transmission speeds, with the LAN port protected against damage from surges, short circuits, or improper connections.

5G / LTE Antenna Specifications

Frequency

• 617 - 960 MHz
• 1.7 - 2.7 GHz
• 3.3 - 4.6 GHz
• 4.7 - 6.0 GHz

Gain

• 617 - 960 MHz: 6 dBi
• 1.7 - 2.7 GHz: 7 dBi
• 3.3 - 4.6 GHz: 7 dBi
• 4.7 - 6.0 GHz: 5.5 dBi

Supported LTE Bands

• 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G Bands

• n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

• < 2.00, max < 3.00

Radiation Pattern

• 80°/80° ±15°

Polarization

• X (+-45 degrees)

Impedance

• 50 Ω

Wi-Fi Antenna Specifications

Frequency

• 2.4 - 2.5 GHz
• 5.0 - 7.2 GHz

Gain

• 2.4 - 2.5 GHz: 6 dBi
• 5 GHz: 7.5 dBi
• 7 GHz: 7.5 dBi

VSWR

• < 1.50, max < 2.00

Radiation Pattern

• 360°/25°

Polarization

• Vertical

Impedance

• 50 Ω.
