Purecrea NeoPixel FlexMatrix 16x16 - 256 x WS2812B RGB LED

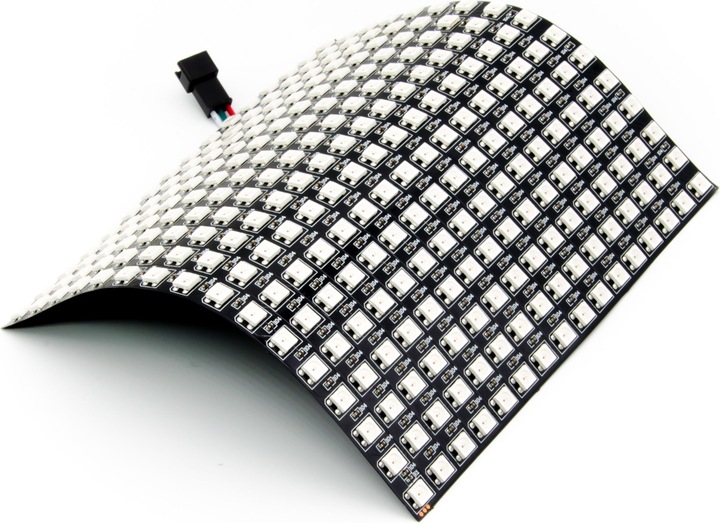

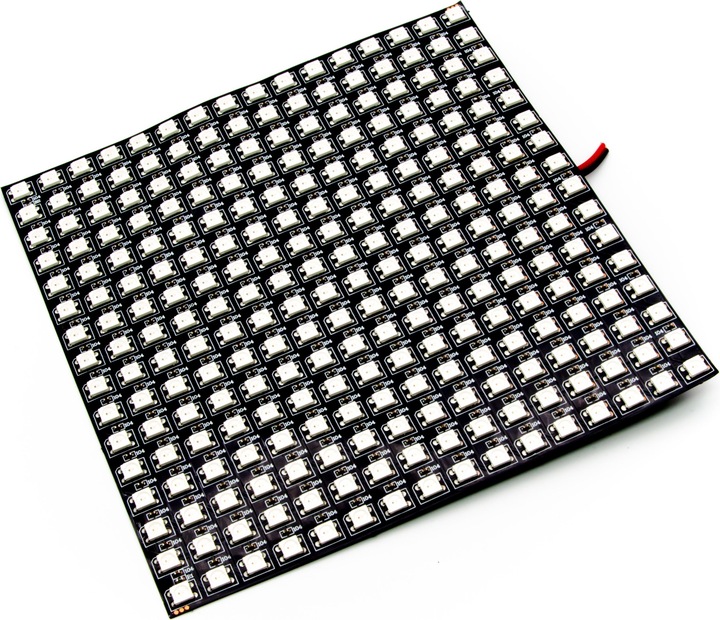

This flexible RGB LED matrix features 256 small RGB LEDs (4.9 x 4.9 mm). The LEDs are already mounted on a flexible PCB. Multiple NeoPixel matrices can be connected in series, and each LED can be easily controlled individually through a microcontroller, such as Arduino UNO, Mega, Nano, ESP32, or ESP8266, via a single output. There are also many programming examples available; just search for NeoPixel or Fastled. We recommend adding a 3300 µF capacitor between GND and 5V to ensure a stable power supply, which will also help extend the lifespan of the LEDs.

Note: If you want to operate the WS2812B matrix with a 3.3V microcontroller like the ESP8266 or ESP32, you will need a "Logic Level Converter."

Technical Details:
Operating Voltage: 5 V DC
Current Consumption: 20 mA per color and LED (at full brightness white max = 20 mA * 3 * 64 = 15.3 A)
Driver Chip: 256 x WS2812B
LED: 5050 RGB
Color: White / Black
Size: 160 x 160 x 4 mm
Weight: 50 g

Package Includes:
1 x NeoPixel FlexMatrix 16 x 16 - 256 x WS2812B RGB LED.
