Power Supply Switch Mode 24V 1.3A 31W
Product details
Output voltage: 24 V dc
Output current: 1.3 A
Rated power: 30 W
Input voltage: 120 – 370 V dc, 85 – 265 V ac
Mounting type: Chassis mount
Enclosure type: Closed
Length: 82 mm
Width: 26.5 mm
Depth: 95 mm
Ripple and noise voltage: 200 mV
Load regulation: 192 mV
Line regulation: 96 mV
Minimum temperature: -10 °C
Maximum temperature: +50 °C
Weight: 220 g

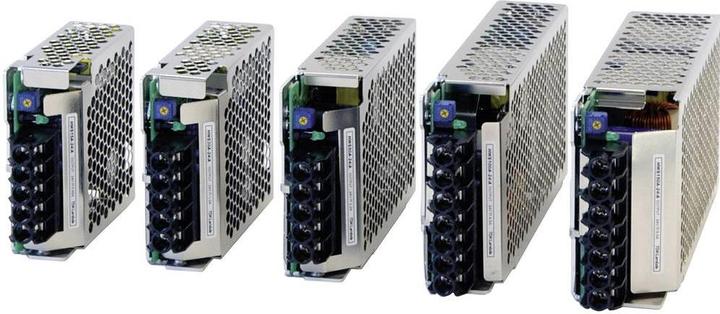

Complies with EN 55011/EN 55022, FCC, and VCCI Class B. UL/CSA/EN 60950-1 and UL508 (with cover). Only products with the suffix A at the end of the part number are equipped with a cover; others have an open design. Power supplies, Series HWS-A, 15 to 1500 W, single output, industrial design. The AC/DC power supplies of the HWS-A series from TDK-Lambda are available in five models with 15–150 W. This represents a significant improvement over the proven HWS series, ensuring compatibility with the new HWS-A series for easy upgrades. This switched-mode power supply is up to 12% lighter compared to the previous series and features up to 91% efficiency, along with a very low power consumption in no-load operation as part of its contribution to reducing environmental impact. The HWS-A series power supplies operate via a universal input of 85–265 V ac. The 50, 100, and 150 W models include active power factor correction, and the operating temperature of the HWS-A models ranges from -10 to +50 °C at full load, extending up to 70 °C with appropriate power reduction. Typical industrial applications for these switch-mode power supplies include factory automation systems, process control, LED displays and signage, testing and measurement, broadcasting, and communication. High efficiency up to 91%, wide AC input range, cost-effective, simple system cooling, supports global use, limited lifetime warranty.
