Portkeys LH7H Monitor

Portkeys LH7H Monitor

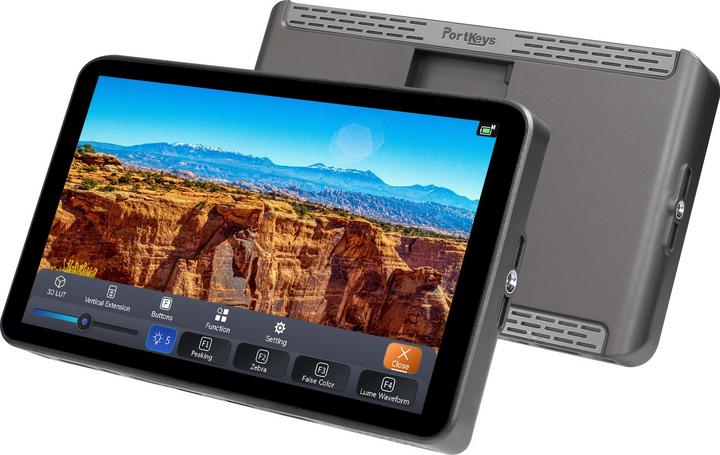

The Portkeys LH7H is our 7-inch entry-level monitor featuring a daylight-readable touchscreen, a professional set of monitoring tools, four user-assignable function buttons, a sturdy yet lightweight polycarbonate and ABS housing weighing only 245 g, and multiple 1/4"-20 mounting points for easy attachment to your camera or camera rig.

Technical Details

Maximum Brightness: 1,000 nits
10-bit panel (8+2 FRC) for accurate color reproduction
Full HD resolution of 1920 x 1080
Wide viewing angle and contrast ratio of 1000:1
4K HDMI input and Full HD HDMI output
Supports 4K DCI at 24p, 4K UHD at 30p, or Full HD 1080p at up to 60p
Supports 4K to 1080p oversampling for high-resolution 1080p video

Power Supply

Integrated Sony NP-F battery plate
Extremely low power consumption of only 8 W
7-24 V power input with 5.5 mm connector for external power supply
USB-A port for custom 3D LUTs and firmware updates

Monitoring Features

3D LUT monitoring and 3D LUT HDMI output
ARRI false color mode and custom mode
New peaking algorithm with peaking frame function
Crop function for precise zooming
Frame guides, grids, aspect ratios, and automatic image flipping
Image recording and image overlay for snapshots and transparency settings
Anamorphic de-squeeze with standard ratios (1.33x, 1.5x, 2.0x) and custom aspect ratio
"Stretch leg" tool for vertical shots
Settings for sharpness, chroma, brightness, backlight, hue, and color temperature.
