Planet 8-Port Ind.SFP Managed Switch

8 Ports
Ratings
BrandMore from Planet
Delivered between Thu, 5.6. and Tue, 10.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

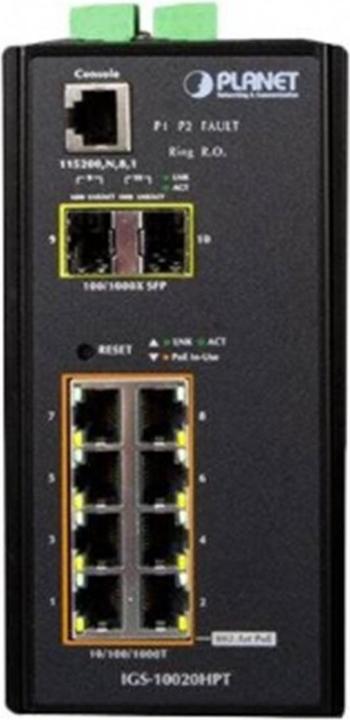

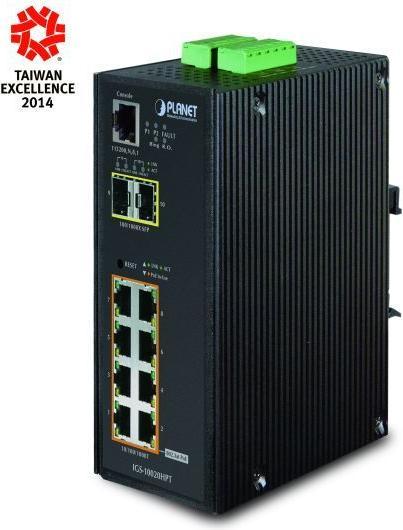

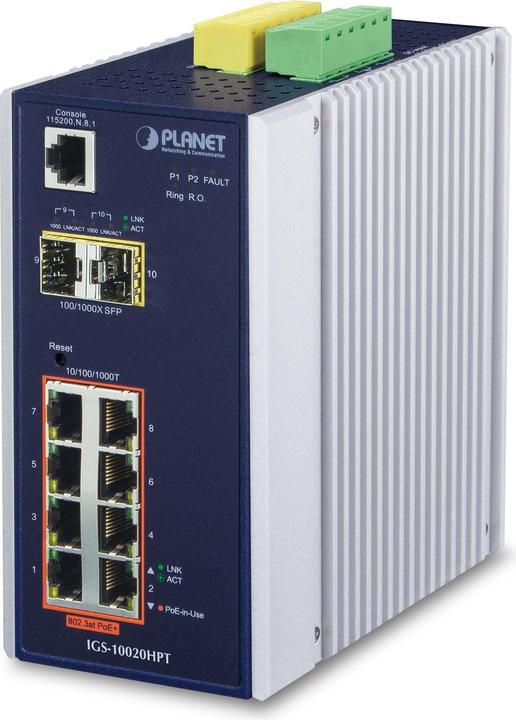

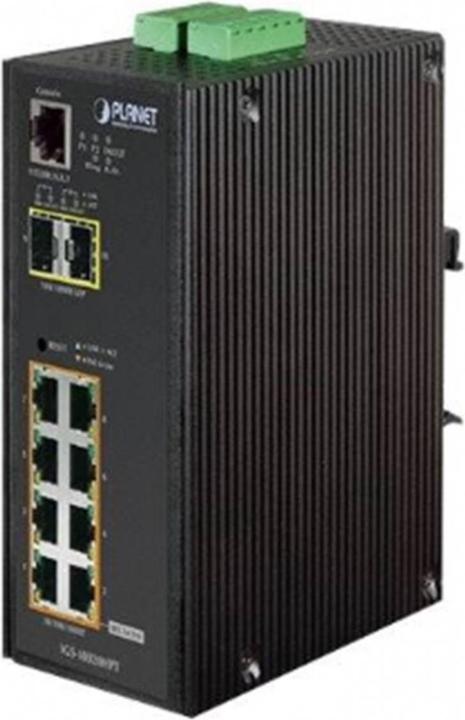

The 8-Port Industrial SFP Managed Switch from Planet is a powerful solution for industrial networking applications. With a robust IP30 housing, this switch is designed for DIN rail mounting and offers high flexibility for installation, including wall mounting. It supports up to eight 10/100/1000 Mbps RJ45 ports with Power over Ethernet (PoE+) according to 802.3at, allowing for a maximum power output of 36 watts per port. The switch is equipped with two SFP slots, enabling flexible connections to various network modules. With a PoE budget of up to 270 watts, it is ideal for environments where multiple PoE devices need to be powered. The operating temperature range of -40 to +75 °C and ESD/EFT protection of 6000 VDC make it particularly suitable for demanding industrial applications. The switch offers extensive management features, including web, Telnet, and console management, as well as support for IPv4/IPv6 and SNMP.

  • Robust IP30 housing for industrial applications
  • Supports PoE+ with up to 270 watts total power
  • Two SFP slots for flexible network connections
  • Extensive management features including VLAN and QoS
  • Operating temperature range of -40 to +75 °C.

Key specifications

Max. port speed
1000 Mbit/s
Network connections
RJ45 (8x)
Switchtype
DIN Rail Switch
Number of PoE ports
8 Ports
Management
Fully managed
Switch functions
Quality of Service (QoS)
Item number
10434000

General information

Manufacturer
Planet
Category
Network switches
Manufacturer no.
IGS-10020HPT
Release date
27.9.2017
External links
Manufacturer's site (de)

Colour

Colour
Black, White
Exact colour description
Black, White

Switch properties

Switchtype
DIN Rail Switch
Number of ports
8 Ports
Number of PoE ports
8 Ports
PoE Standard
802.3af (PoE)
PoE budget
270 W
Management
Fully managed
Switch functions
Quality of Service (QoS)
switching layer
Layer 2
Switching capacity
20 Gbit/s
VLAN type
Static VLAN
Max. Number of VLANs
4094 x
MAC adress table size
6000
IGMP Snooping
v1, V2, V3
Manufacturer Type
1000, IP30 Industrial 8x 1000TP PoE + 2x 100

Network connections

Network connections
RJ45 (8x)
Max. port speed
1000 Mbit/s
Max. port speed RJ45
10000 Mbit/s
Max. Port speed
1000 Mbps / 1 Gbps

Application range

Application range
Business

Mains supply properties

Network operation
Power supply internal
Power consumption
31.90 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Internal power supply

Product dimensions

Length
10.70 cm
Width
15.20 cm
Height
7.20 cm
Weight
1684 g

Package dimensions

Length
17.30 cm
Width
30.40 cm
Height
9.10 cm
Weight
1.50 kg

30-day right of return
24 Months Warranty (Bring-in)
