Product details
Supply voltage = 24 V dc
Number of channels = 2
auxiliary switch = 2
Safety contacts = 3
Range = PNOZ X
Reset type = Automatic, manual
Connection type = Screw mounting
Width = 45mm

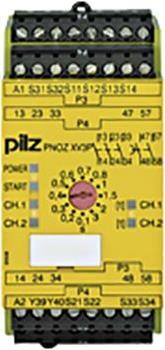

CE, cULus approval, TÜV, CCC. EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, EN 60947-5-1. safety relay PNOZ XV3. The PNOZ XV3P 3 safety relay provides a safety-related interruption of a safety circuit. It meets the requirements of EN 60947-5- 1, EN 60204-1 and VDE 0113-1. Features and benefits. Relay outputs, 3 immediate safety contacts (NO), positively guided relay outputs, switch-on delay reactivated: 2 safety contacts (normally open), positively guided with adjustable or fixed switch-on delay (depending on unit) LED for operating voltage, LEDs for switching positions of all output relays and reset circuits Connection for safety limit switch, emergency stop, safety gate switch and for external reset buttons Output circuit is redundant Single or dual channel operation Feedback circuit for monitoring external contactors/relays Prevents machine operation in case of power failure, component failure, coil failure in a relay, cable break and ground fault DIN rail mounting Screw terminals. Scope of application. The PNOZ XV3P 3 safety relay is used in applications with emergency stop switches and safety barriers.
