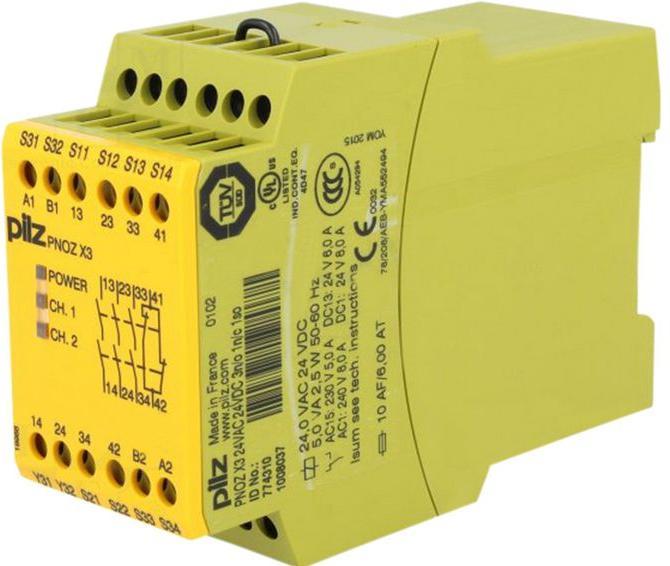

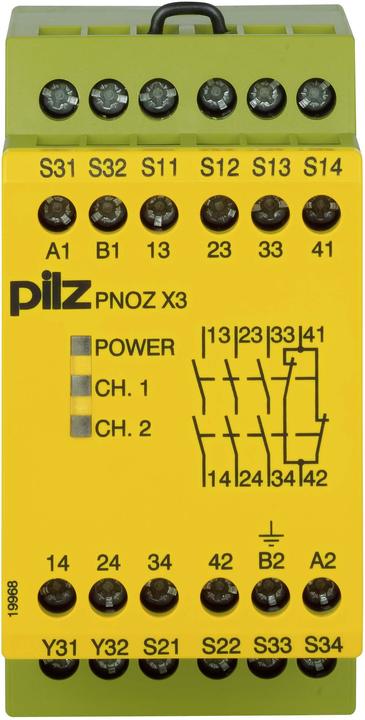

Pilz PNOZ X3 safety relay w/LED,110Vac/24dc

Supply voltage: 24 V DC, 110 V AC
Number of channels: 2
Auxiliary contact: 1
Function: Safety switch/lock
Safety category ISO 13849-1: 4
SIL: 3
PL: E
Safety contacts: 3
Range: PNOZ X
Reset type: Automatic, Monitored
Connection type: Screw fastening
Width: 45 mm

CE, cULus approval, TÜV, KOSHA, CCC. The PNOZ X3 series of safety relays from PILZ introduces a safety-related interruption into your circuit, with primary applications typically found in potentially hazardous environments where a quick power shutdown is required. This is particularly useful in automated environments with high foot traffic, such as factories and warehouses.

Features and benefits:

• LED status indicators to assist in switching the channel status between 1 or 2 signals and also for monitoring the supply voltage
• Semiconductor output signals: Switching status channel 1/2
• 3 safety contacts, 1 auxiliary contact
• Multiple connection outputs and status indicators
• The opening and closing of the safety relays are automatically checked with each on/off cycle
• A monitored manual reset is available in this device
• Standard for DIN rail mounting

Safety features:

• The circuit is redundant and features integrated self-monitoring
• Reliable X3 functionality ensures that your safety function remains effective even in the event of component failure
• The transformer is short-circuit proof, and a safety module is used with a DC power supply

Applications:

• Emergency stop buttons
• Safety door guards
• Reset buttons
• Light barriers

Safety technical parameters:

• EN 60204-1
• EN (IEC) 62061
• EN ISO 13849-1
• VDE 0113-1
• EN 60947-5-1.
