Pilz Non-contact coded sw. & act. ATEX

Supply voltage: 24 Vdc
Housing material: Plastic
Series: PSENmag
Switching distance: 15 mm
Protection class: IP67
Actuator included: Yes
Width: 40 mm

The standard EN60947-5-3 is only met when the entire system, consisting of safety switch (PSENcode), actuator (PSENcode), and safety monitoring module (PNOZ X or PNOZmulti), is used. EN954-1 (Cat. 4), EN60204-1, EN60947-5-3. II 3GD EEx nC IIC T6; TÜV. EX8 04 11 20132 014. CE, cULus certification, ATEX, TÜV, FCC, IC, ECOLAB.

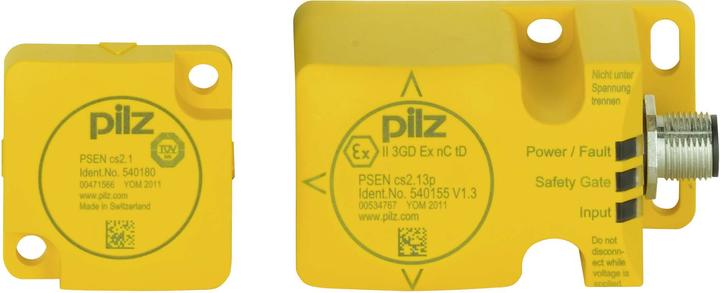

When the safety barrier is closed, the switch provides two normally open semiconductor outputs. The large non-contact PSENcode safety switch, danger zone. The PSEN cs1.1p safety switch is coded and operates with an actuator from the PSEN cs1.1 series. The actuator can be used and reset as many times as needed. The PSEN cs2.13p safety switch is fully coded and operates with an actuator from the PSEN cs2.1 series. These actuators must be taught in. It can be taught in up to a maximum of eight times, but only one actuator at a time.

Features and benefits: Serial connection, more than 10 safety switches in series according to EN954-1 (Cat. 4). The switch responds to a single actuator but can be taught in up to eight times with a new actuator. Five actuation directions, M12 connection, 8-pole. For use in EX area category 3, zones 2 and 22 according to EN50021, protection class IP67.
