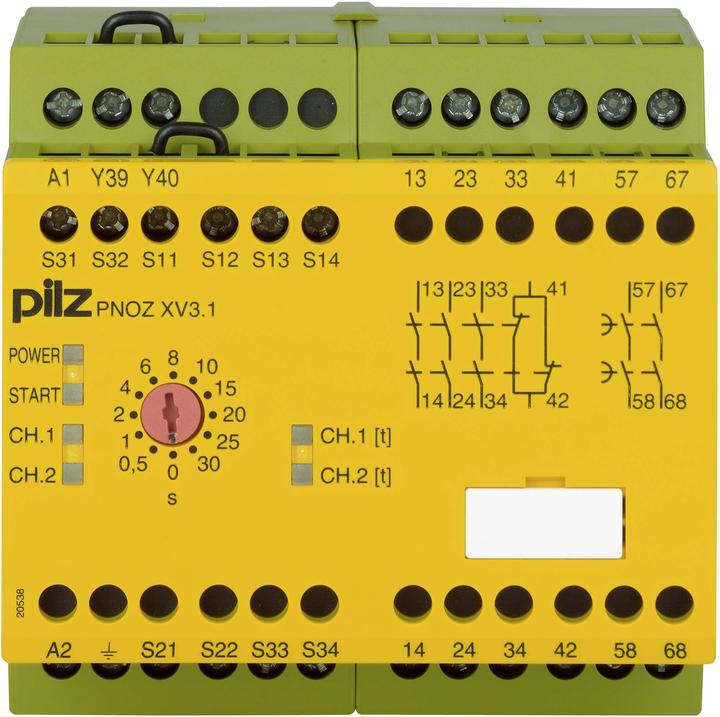

Pilz 774610 PNOZ XV3.1 30/24-240VACDC 3no 1nc 2no t

Ratings
BrandMore from Pilz
Delivered between Fri, 13.2. and Wed, 25.2.
free shipping

Product details

The PILZ 774610 PNOZ XV3.1 is a highly advanced safety relay designed for monitoring emergency stops and safety doors. It offers a flexible 1/2-channel configuration with or without cross-short detection and is capable of fulfilling various safety functions. With an input voltage of 24-240V AC/DC and a width of 90 mm, this installation relay is suitable for a wide range of applications. The integrated screw terminals facilitate installation and connection. The device features multiple outputs, including 3 safety contacts and 1 normally open contact, as well as 2 additional safety contacts. The reset time can be adjusted in 12 levels from 0 to 30 seconds, allowing for precise adaptation to specific safety requirements. This device is ideal for use in industrial applications where safety and reliability are of utmost importance.

  • 1/2-channel configuration with/without cross-short detection
  • Input voltage of 24-240V AC/DC
  • Adjustable reset time in 12 levels from 0-30 seconds
  • Integrated screw terminals for easy installation
  • Monitoring of emergency stops and safety doors with delayed reset contacts.

Key specifications

Scope of delivery
1 opener, 2 closers, 3 Closers
Output current type
AC/DC
Relay type
Monitoring relay
Output voltage
24 V
input voltage
240 V
Number of poles
4x

General information

Item number
23166056
Manufacturer
Pilz
Category
Relays
Manufacturer no.
774610
Release date
21.11.2022
External links
Manufacturer's site (de)

Relay properties

Relay type
Monitoring relay
input voltage
240 V
Output voltage
24 V
Output current type
AC/DC
Resistor
240 Ω
Switching function
Normally open
Number of openers
1x
Number of closers
3x
Number of poles
4x
Manufacturer Type
774610 PNOZ XV3.1 30

Smart home features

Smart Home
Not compatible

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 opener, 2 closers, 3 Closers

Product dimensions

Width
90 mm
